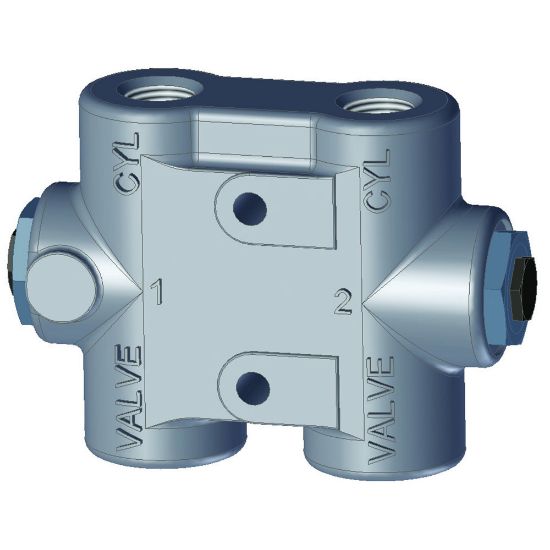

Parker LO-10-S - Pilot Operated Check Valves – LO, LOA Series

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LO-10-S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	+200 °F	Division	Hydraulic Valve Systems Division
Connection Type	SAE	Maximum Operating Pressure	3000 psi
Body Material	High Strength Cast Iron	Configuration	n/a
Product Style	Piolt Operated Check Valve	Minimum Operating Temperature	-40 °F
Actuation Type	Hydraulic Pressure	Flow Direction	n/a
Connection Size	#10	Mounting Type	In-Line
Options	Single PO Check	Weight	6 lb
Seal Material	Nitrile	Maximum Flow Rate	25 Gal/min
Valve Option	Single	Flow Rate (gpm)	25
Port Size	SAE-10
