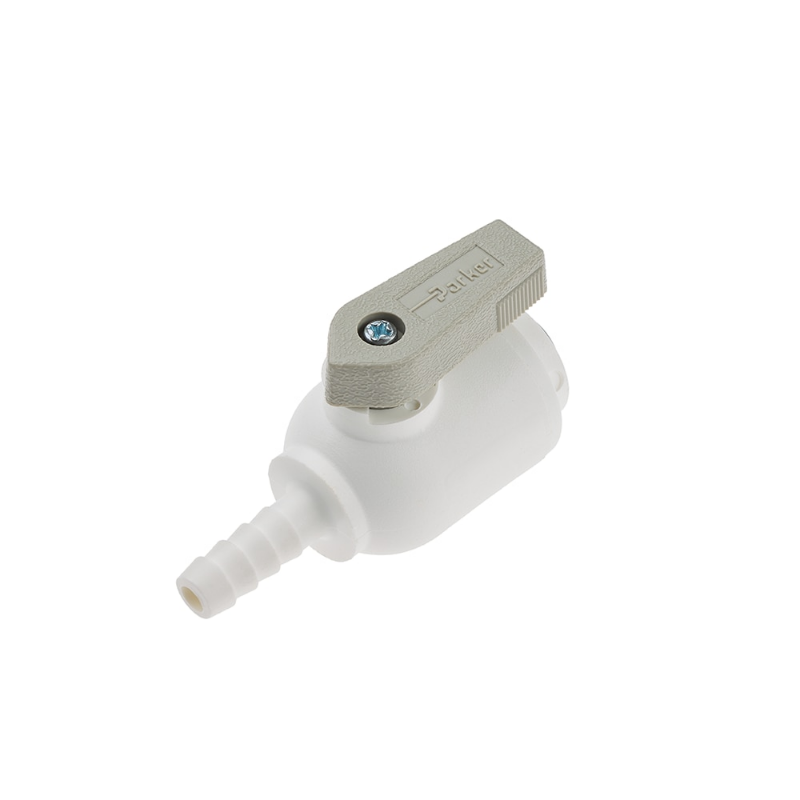

Parker LFPP4VUCPB4 - Polypropylene Ball Valves

Parker's polypropylene ball valves corrosion resistant design make them ideal for water filtration units, coffee and beverage machines and various other fluid applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LFPP4VUCPB4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	EPDM	Connection Type	NPTF
Specifications Met	FDA, NSF-51, NSF-61	Division	Fluid System Connectors Division
Orifice Size	.15 inch	Ball Material	Polysulfone
Minimum Operating Temperature	-18 °C	Maximum Operating Pressure	10 bar
Seat Material	EPDM	Maximum Operating Temperature	107 °C
Body Material	Polypropylene	Shape	Connector
Connection 3 Size	N/A	Connection 2 Type	Barb
Connection 1 Size	1/4 inch	Connection 2 Size	1/4 inch
Connection 1 Type	Push-to-Connect	Connection 3 Type	N/A
Product Style	Tube to Barb	Color	White
