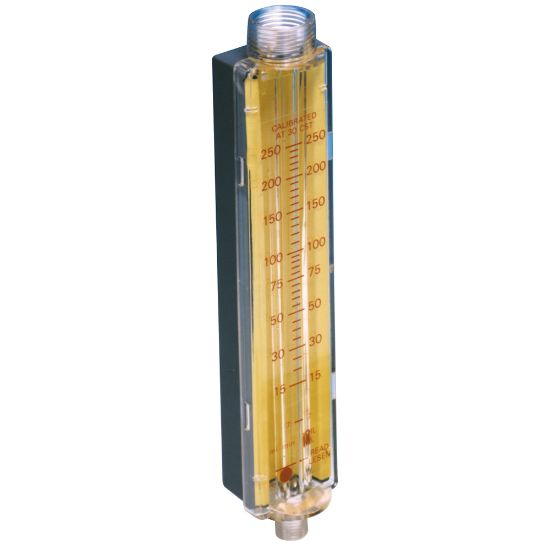

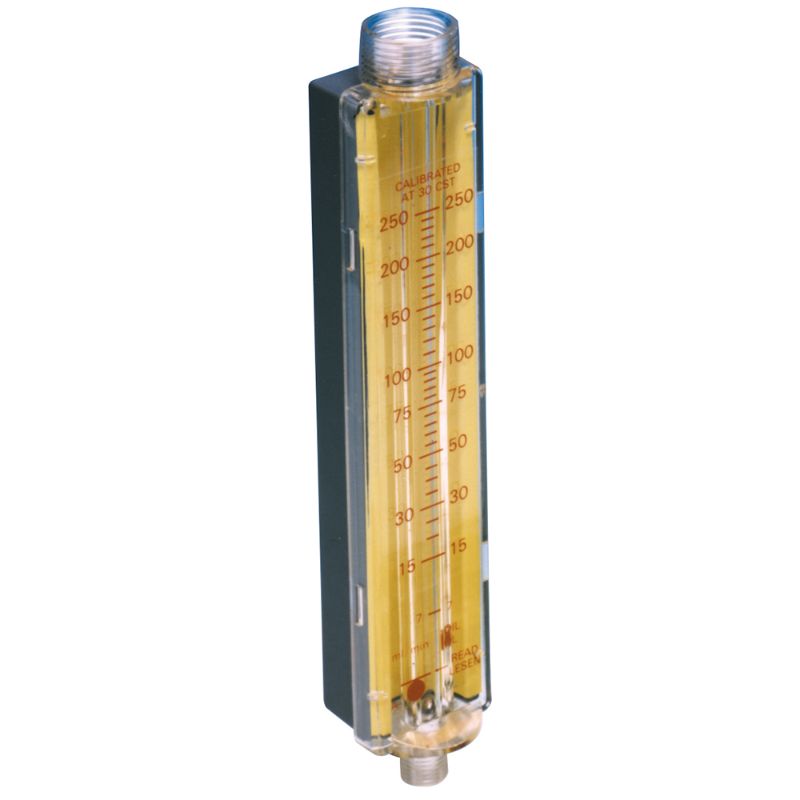

Picture of Parker LF801411 - Low Pressure Mechanical Flowmeters – Loflow Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker LF801411 - Low Pressure Mechanical Flowmeters – Loflow Series

The Loflow Series comprises a range of inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 0.01 – 22 LPM. Maximum allowable working pressure: 10 bar.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. LF801411
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Weight0.14 kgWidth40 mm
Accuracy+/- 2% typical FSDMaterials of ConstructionStainless Steel
Electrical Requirementsn/aOperating Pressure10 bar
Port TypeBSPTSensing MethodVariable Orifice Flow Meter
Cycle Timen/aSpecifications MetPressure Directive
Operating Temperature60 °CSignal Outputn/a
Diametern/aOperating Humidityn/a
TechnologyFiltrationMaximum Fluid Temperature140 °F
Minimum Fluid Temperature+5 °CHeight39 mm
DivisionHydraulic & Industrial Process Filtration Division EMEABody MaterialGrillon TR55
Product StyleFlow MeterSeal Materialn/a
IndustryIndustrial Manufacturing EquipmentDivisionHydraulic & Industrial Process Filtration Division EMEA
For Fluid TypeWaterATEX Specifications Metn/a
Port Size1/4 to 3/4 inchBrandParker
Communication Interfacen/aIngress Protection RatingN/A
Product TypeCondition MonitorLength216 mm
Flow Rate0.06 to 0.55 L/minFor Fluid TypeWater
Housing MaterialStainless SteelFlow Rate0.06 to 0.55 l/min
