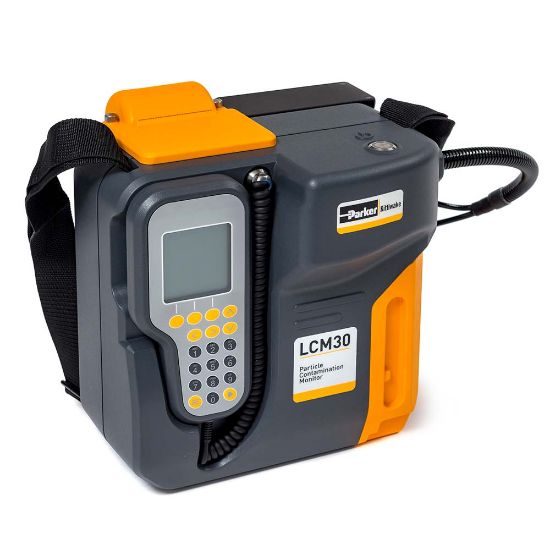

Parker LCM302022EU - icountLaserCM30 - Portable Particle Monitor

The Parker icountLCM30 is a next generation fluid system contamination monitor offering an under 90 second test procedure that reports particle micron size and distribution.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LCM302022EU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	Metric	Brand	Parker
Technology	Filtration	Body Material	Brass
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Industrial Manufacturing Equipment	Product Type	Condition Monitor
Specifications Met	CE Certification	Maximum Fluid Temperature	80 °C
Application	Hydraulic Presses	Width	206 mm
Height	281 mm	Weight	7.5 kg
Operating Temperature	+5 to +40 °C	Length	291 mm
Accuracy	< 7 %	Flow Rate	< 400 L/min
Port Size	M16	Cycle Time	< 90 seconds in both single and multi-test mode.
Product Style	Particle Detector/Counter	Sensing Method	Laser
Operating Humidity	(%RH) ±5% RH	Electrical Requirements	110 to 240 VAC
Ingress Protection Rating	IP54	Minimum Fluid Temperature	41 °F
Signal Output	Display	Operating Pressure	Up to 420 bar
Communication Interface	USB-B Port	Seal Material	Fluorocarbon
Options	Standard	Product Type	Condition Monitor
For Fluid Type	Mineral-based Oils and Petroleum-based Fuel	Calibration Type	MTD calibrated
Electrical Connection	EU

Product resources

Literature and Reference Materials

BROCHURE-icountLaserCM30 Particle Contamination Monitor - (English) (PDF)
