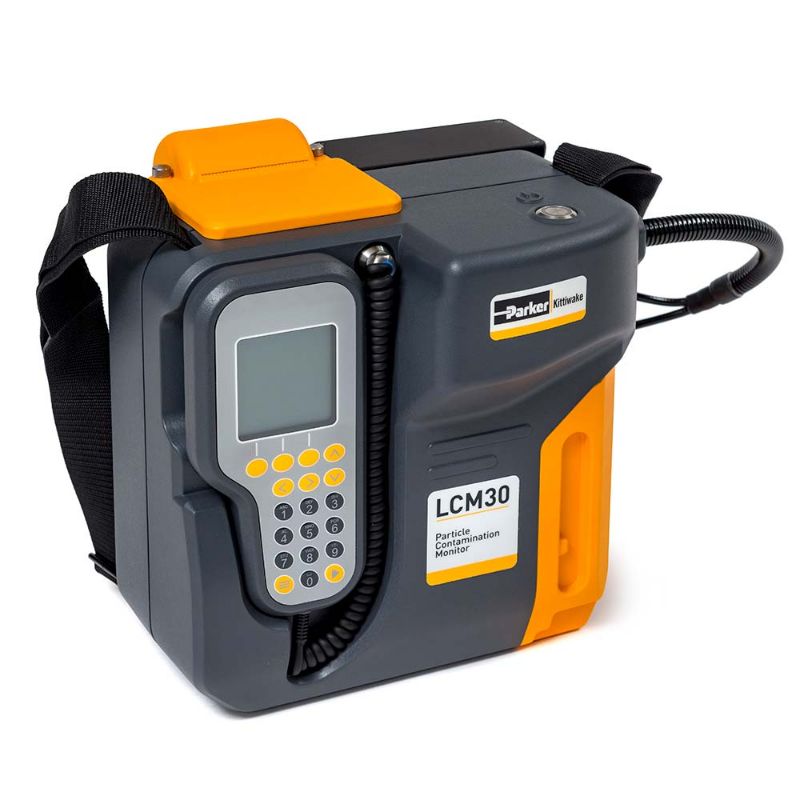

Parker LCM302022 - icountLaserCM30 - Portable Particle Monitor

The Parker icountLCM30 is a next generation fluid system contamination monitor offering an under 90 second test procedure that reports particle micron size and distribution.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LCM302022

$21,145.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	M16
Communication Interface	USB-B Port	Body Material	Brass
Product Style	Particle Detector/Counter	Division	Hydraulic & Industrial Process Filtration Division EMEA
Signal Output	Display	Operating Temperature	+5 to +40 °C
Flow Rate	< 400 L/min	Electrical Requirements	110 to 240 VAC
Length	291 mm	Operating Humidity	(%RH) ±5% RH
Application	Waste Balers	Specifications Met	CE Certification
Maximum Fluid Temperature	80 °C	Product Type	Condition Monitor
Weight	7.5 kg	Port Type	Metric
Operating Pressure	29 to 6000 psi	Sensing Method	Laser
Industry	Industrial & Chemical Processing	Brand	Parker
Width	206 mm	Minimum Fluid Temperature	41 °F
Cycle Time	< 90 seconds in both single and multi-test mode.	Division	Hydraulic & Industrial Process Filtration Division EMEA
Accuracy	< 7 %	Ingress Protection Rating	IP54
Technology	Hydraulics	Height	281 mm
Seal Material	Fluorocarbon	Options	n/a
For Fluid Type	Mineral-based Oils and Petroleum-based Fuel	Calibration Type	n/a
Electrical Connection	n/a

Product resources

Literature and Reference Materials

BROCHURE-icountLaserCM30 Particle Contamination Monitor - (English) (PDF)
