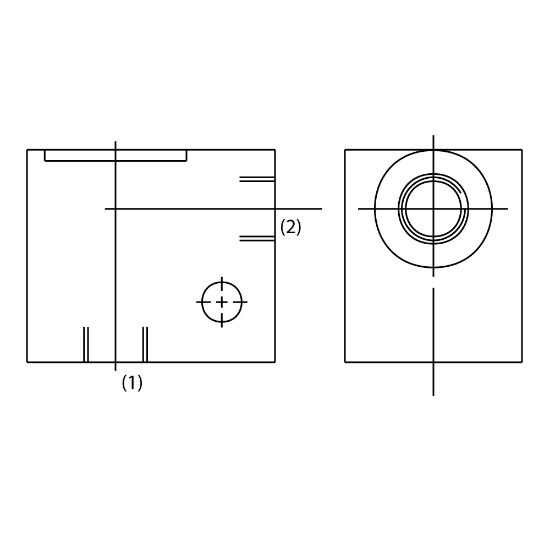

Parker LB10324A - Special Bodies

Parker’s offering of special bodies and cavities for legacy valves to fit a variety of port options and applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LB10324A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	SAE	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Operating Pressure	210 bar	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	2G
Weight	0.22 kg	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Number of Positions	2 way	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Division	Hydraulic Cartridge Systems Division	Body Material	Aluminum
Connection Size	-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Number of Positions	2 way	Connection Type	SAE
Cavity Size	2G	Connection Size	-4
Body Material	Aluminum
