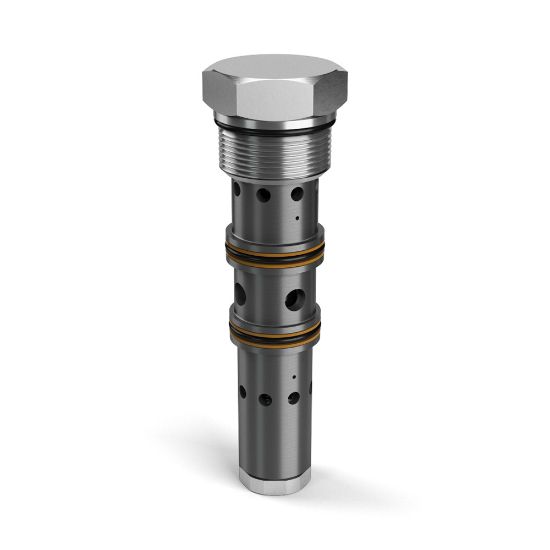

Parker L1A3001505050V - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. L1A3001505050V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operation Type	Automatic	Flow Rate	85 Gal/min
Maximum Operating Temperature	+400 °F	Weight	2.2 lb
Division	Mobile Hydraulic Systems Division Europe	Configuration	n/a
Minimum Operating Temperature	-26 °C	Operating Temperature	-15 to +400 °F
Flow Rate Accuracy	10%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	320 L/min	Maximum Inlet Pressure Rating	5000 psi
Maximum Operating Pressure	350 bar	Function	Flow Divider/Combiner
Installation Torque	150 Nm	Valve Material	All parts steel. All operating parts hardened steel
Connection Type	n/a	Actuation Type	Interlocking Spools
Cavity Size	91-1	Body Material	n/a
Seal Material	Fluorocarbon	Ratio	50/50
Division	Hydraulic Cartridge Systems Division	Connection Size	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Standard Flow Rate Setting	15.9-39.7 Gal/min	Ratio	50/50
Flow Rate	85 GAL/MIN, 320 L/MIN	Standard Flow Rate Setting	15.9-39.7 GAL/MIN, 60-150 L/MIN
Seal Material	Fluorocarbon
