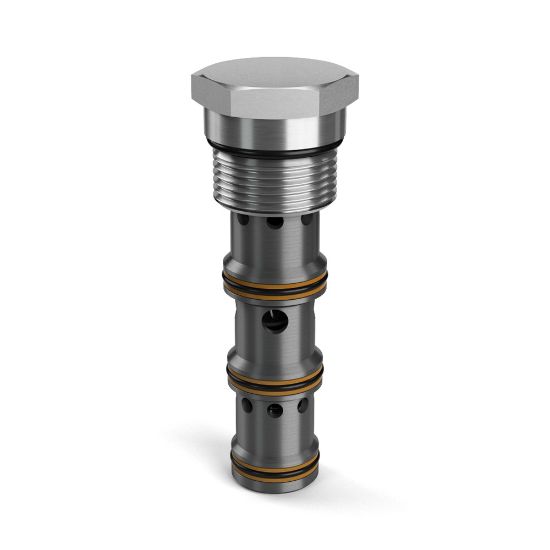

Parker L06A3-45-45V - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. L06A3-45-45V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	10%
Maximum Inlet Pressure Rating	6000 psi	Function	Flow Divider/Combiner
Body Material	n/a	Connection Type	n/a
Division	Hydraulic Cartridge Systems Division	Ratio	50/50
Weight	0.86 lb	Actuation Type	Interlocking Spools
Seal Material	Fluorocarbon	Maximum Flow Rate	47 Gal/min
Connection Size	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	C16-4
Operation Type	Automatic	Flow Rate	180 L/min
Division	Mobile Hydraulic Systems Division Europe	Configuration	n/a
Operating Temperature	-15 to +400 °F	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	+204 °C	Maximum Operating Pressure	420 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Standard Flow Rate Setting	25-90 L/min
Installation Torque	100 Nm	Ratio	50/50
Seal Material	Fluorocarbon	Flow Rate	47 GAL/MIN, 180 L/MIN
Standard Flow Rate Setting	6.6-23.8 GAL/MIN, 25-90 L/MIN
