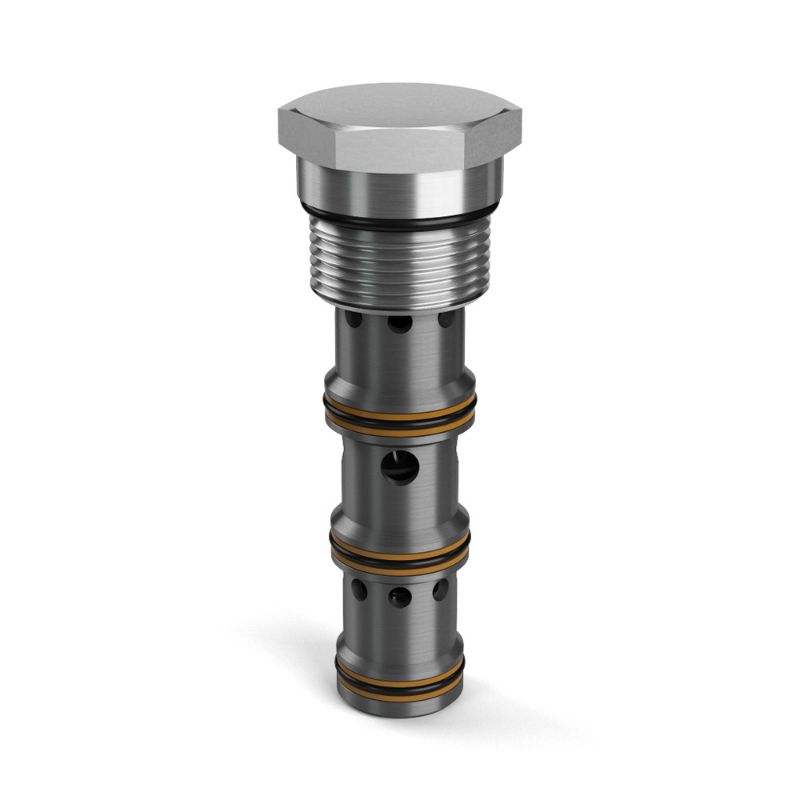

Parker L06A3-45-45N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

AFP Availability:	Quote Required
Partner Available:	24 In Stock

Brand Parker

Part No. L06A3-45-45N

$665.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	47 Gal/min
Standard Flow Rate Setting	25-90 L/min	Operation Type	Automatic
Body Material	N/A	Minimum Operating Temperature	-34 °C
Installation Torque	74 lb-ft	Operating Temperature	-30 to +250 °F
Division	Mobile Hydraulic Systems Division Europe	Flow Rate	47 Gal/min
Connection Size	N/A	Actuation Type	Interlocking Spools
Seal Material	Nitrile	Flow Rate Accuracy	10%
Weight	0.86 lb	Maximum Inlet Pressure Rating	420 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	420 bar	Valve Material	All parts steel. All operating parts hardened steel
Function	Flow Divider/Combiner	Configuration	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Cavity Size	C16-4	Connection Type	N/A
Maximum Operating Temperature	+250 °F	Ratio	50/50
Seal Material	Nitrile	Flow Rate	47 GAL/MIN, 180 L/MIN
Standard Flow Rate Setting	6.6-23.8 GAL/MIN, 25-90 L/MIN	Ratio	50/50
