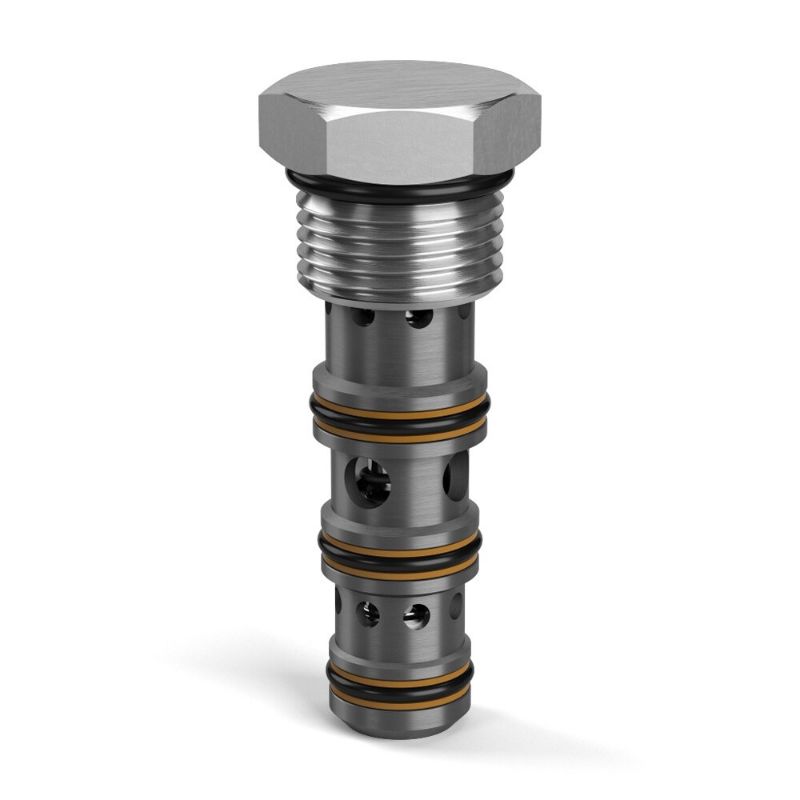

Parker L04A3-30-30N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. L04A3-30-30N

$265.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	n/a
Maximum Inlet Pressure Rating	420 bar	Division	Mobile Hydraulic Systems Division Europe
Standard Flow Rate Setting	14-60 L/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.12 kg	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	10%	Flow Rate	16 Gal/min
Function	Flow Divider/Combiner	Body Material	n/a
Connection Type	n/a	Ratio	50/50
Division	Hydraulic Cartridge Systems Division	Seal Material	Nitrile
Actuation Type	Interlocking Spools	Maximum Flow Rate	60 L/min
Maximum Operating Temperature	+121 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	6000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Connection Size	n/a	Operating Temperature	-34 to +121 °C
Installation Torque	37 lb-ft	Cavity Size	C10-4
Operation Type	Automatic	Minimum Operating Temperature	-30 °F
Seal Material	Nitrile	Standard Flow Rate Setting	3.7-15.9 GAL/MIN, 14-60 L/MIN
Flow Rate	16 GAL/MIN, 60 L/MIN	Ratio	50/50
