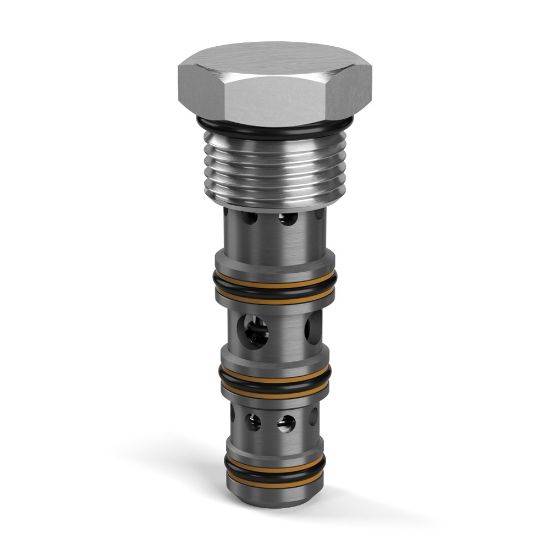

Parker L04A3-10-10N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. L04A3-10-10N

$265.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Interlocking Spools
Seal Material	Nitrile	Standard Flow Rate Setting	2.1-5.3 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	6000 psi
Connection Size	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Automatic	Weight	0.26 lb
Operating Temperature	-34 to +121 °C	Flow Rate	60 L/min
Cavity Size	C10-4	Maximum Operating Temperature	+250 °F
Minimum Operating Temperature	-30 °F	Maximum Flow Rate	16 Gal/min
Configuration	n/a	Division	Mobile Hydraulic Systems Division Europe
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	6000 psi
Flow Rate Accuracy	10%	Valve Material	All parts steel. All operating parts hardened steel
Connection Type	n/a	Body Material	n/a
Ratio	50/50	Division	Hydraulic Cartridge Systems Division
Function	Flow Divider/Combiner	Installation Torque	50 Nm
Standard Flow Rate Setting	2.1-5.3 GAL/MIN, 8-20 L/MIN	Seal Material	Nitrile
Flow Rate	16 GAL/MIN, 60 L/MIN	Ratio	50/50
