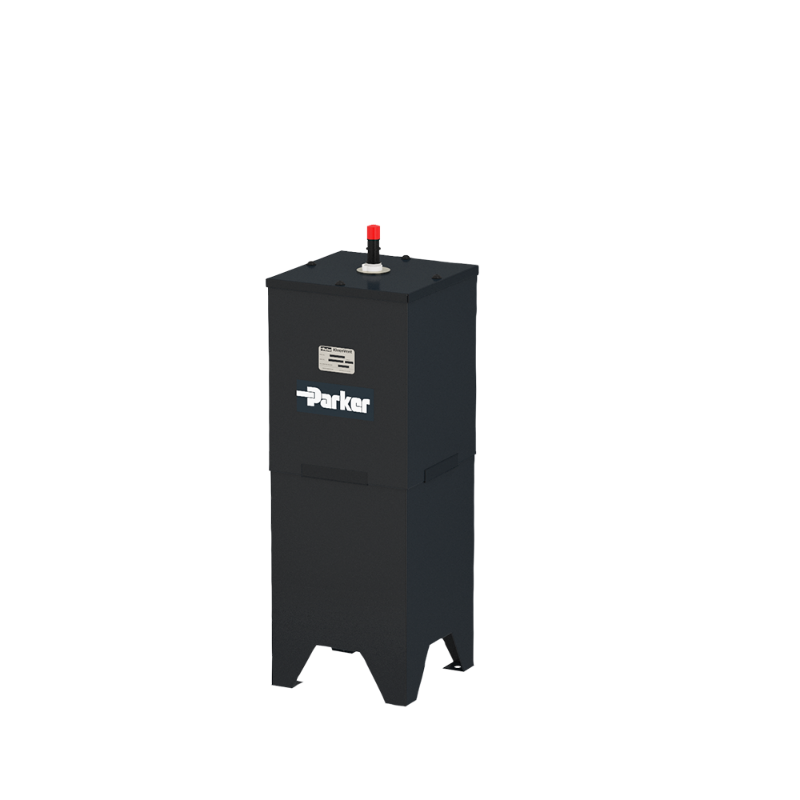

Parker KVE005M50A2 - Hydraulic Reservoir Isolator - KVE Series KleenVent® - (Americas)

As a maintenance-free alternative to traditional filler breathers, a KleenVent® protects against the ingestion of airborne contamination and keeps hydraulic fluid clean - extending oil life and reducing the overall cost of hydraulic system maintenance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. KVE005M50A2

$3,263.89

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	15.8 kg
Pressure Rating	Atmospheric psi	Height	861 mm
Enclosure Material	Metal-16 gauge steel	Elastomer	Urethane
Division	Accumulator and Cooler Division	Depth	327.6 mm
Width	327.6 mm	Port Size	Barbed Fitting for 1" I.D. Hose Connection
Coating	Powder Coating	For Fluid Type	Compatible with most mineral oil-based fluids
Operating Temperature	'-40 to 200 °F	Elastomer Material	Urethane
Volume (Gallons)	5	Enclosure Material	Metal - 16 Gauge Steel
