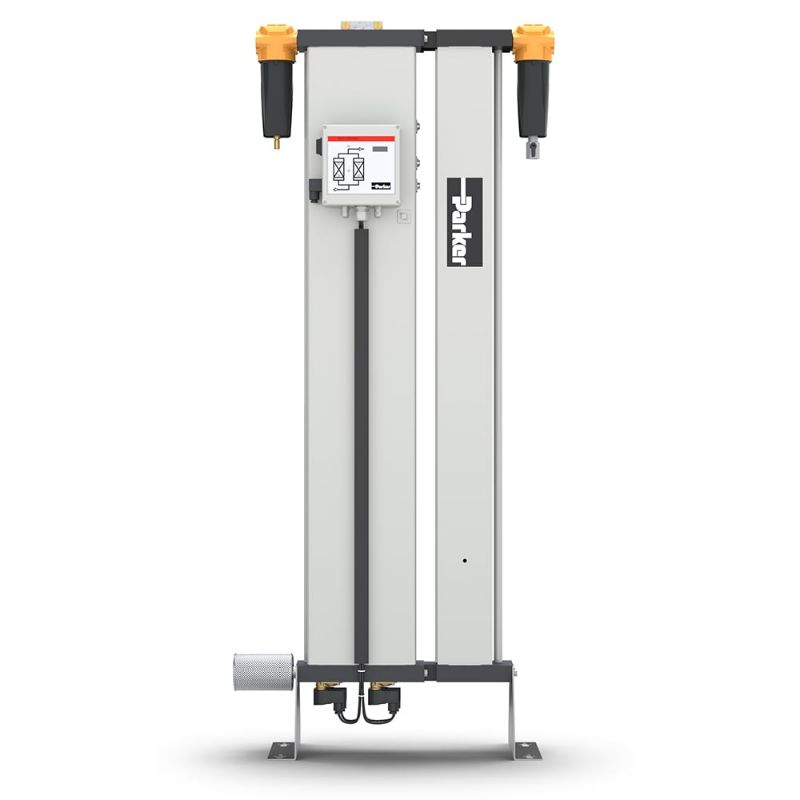

Parker K4/16DA3-G115DMT - KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage

Compact, heatless compressed air adsorption dryers with oil vapour removal for industrial requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options available).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K4/16DA3-G115DMT

Products specifications

Attribute name	Attribute value
Weight	35	Pressure Dew Point	Standard: -40°C (-40°F)<br/>
Depth	210.0	Operating Temperature	5 to 50
Product Type	Compressed Air Dryer	Division	Gas Separation and Filtration Division EMEA
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Noise Level	65 to 86
Application	Compressed Air Applications	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Ambient Temperature	50.0 °C Maximum	Division	Gas Separation and Filtration Division EMEA
Technology	Filtration	Connection Type	BSPP
Height	1078.0	Product Series	KA-MT 1-8
Product Style	Heatless with Activated Carbon Stage	Operating Pressure	4 to 16
Brand	Parker	Width	577.0
Specifications Met	PED 2014/68/EU Fluid Group II	Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only
Optional Accessories	Pre-installed Dew Point Sensor	Port Size	¼ inch
Electrical Requirements	115V 1ph 50/60Hz	Flow Rate	35 m³/h @7 barg (21 cfm @102 psig)
