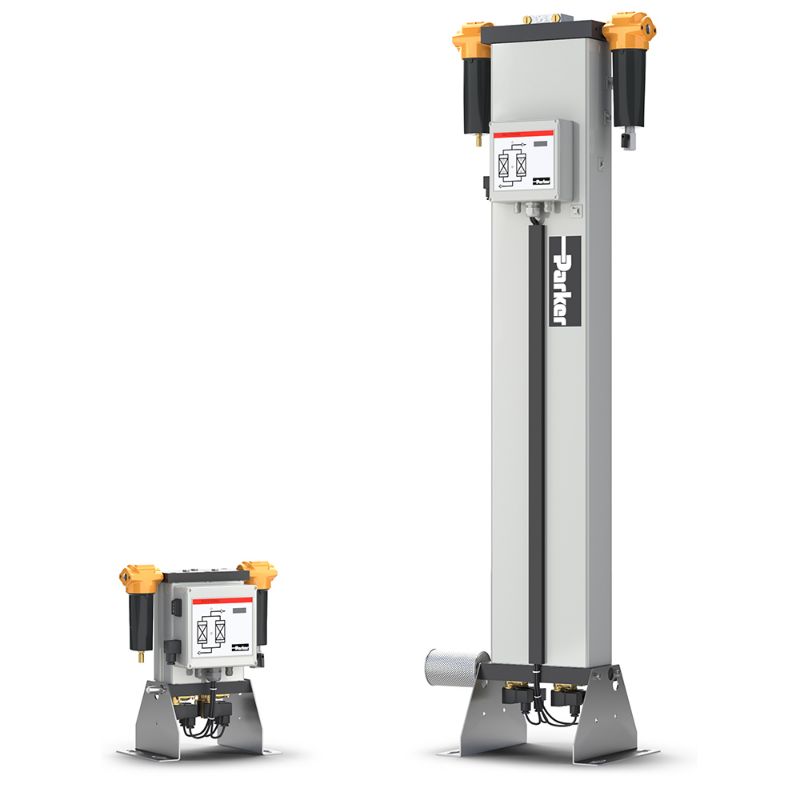

Parker K4/16D3-N115M - K-MT 1-8 Series Heatless Compressed Air Dryer

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K4/16D3-N115M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Compressed Air Dryer	ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1
Product Series	K-MT 1-8	Operating Pressure	58 to 232 psig
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental	Division	Gas Separation and Filtration Division EMEA
Ambient Temperature	122.0	Technology	Filtration
Operating Temperature	41 to 122 °F	Connection Type	BSPP
Depth	8 inch	Noise Level	65 to 86 dBA
Product Style	Heatless	Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only
Height	1078.0 mm	Specifications Met	PED 2014/68/EU Fluid Group II
Brand	Parker	Division	Gas Separation and Filtration Division EMEA
Width	345.0 mm	Pressure Dew Point	Standard: -40°C (-40°F)<br/>
Optional Accessories	None	Electrical Requirements	115V 1ph 50/60Hz
Port Size	¼ inch	Flow Rate	35 m³/h @7 barg (21 cfm @102 psig)
