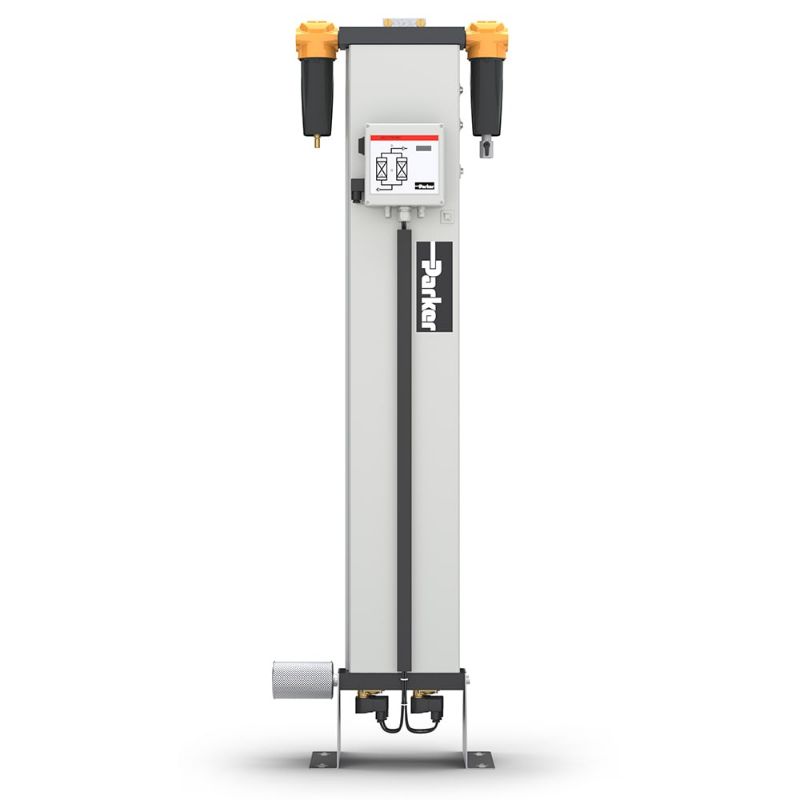

Parker K4/16D3-G230MT - K-MT 1-8 Series Heatless Compressed Air Dryer

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K4/16D3-G230MT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Ambient Temperature	50.0 °C Maximum	Connection Type	BSPP
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental	Division	Gas Separation and Filtration Division EMEA
Operating Temperature	41 to 122 °F	Technology	Filtration
Height	1081.0 mm	Product Style	Heatless
Depth	8 inch	Noise Level	65 to 86 dBA
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Specifications Met	PED 2014/68/EU Fluid Group II
Brand	Parker	Pressure Dew Point	Standard: -40°C (-40°F)<br/>
Division	Gas Separation and Filtration Division EMEA	Product Type	Compressed Air Dryer
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Width	14 inch
Operating Pressure	58 to 232 psig	Product Series	K-MT 1-8
Port Size	¼ inch	Flow Rate	35 m³/h @7 barg (21 cfm @102 psig)
Optional Accessories	Pre-installed Dew Point Sensor	Electrical Requirements	230V 1ph 50/60Hz

Product resources

Literature and Reference Materials
