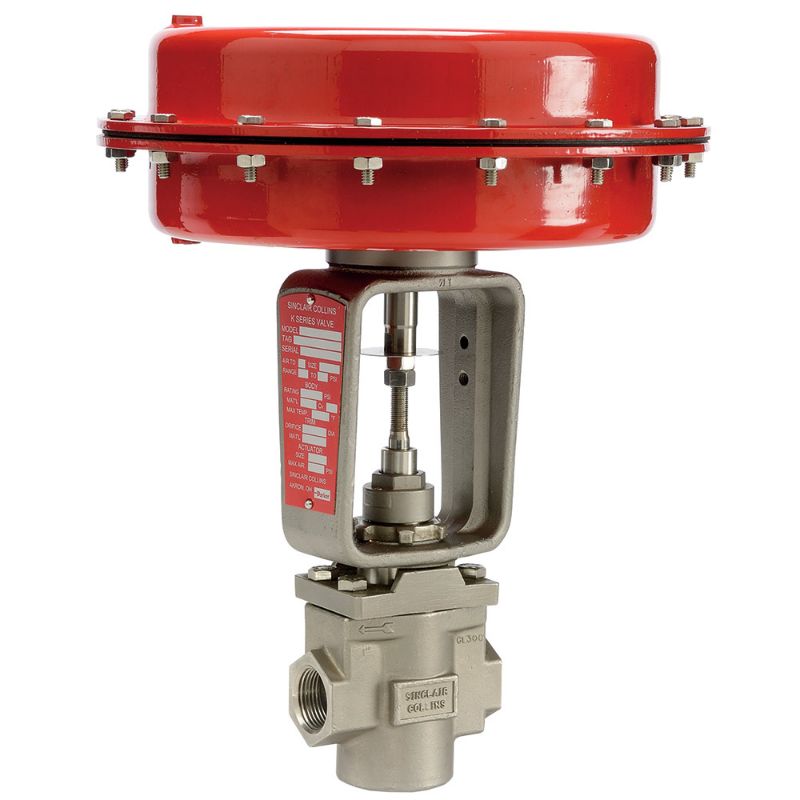

Parker K32-22112000 - Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K32-22112000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	316 Stainless Steel	Media	Valves for steam, air, neutral gasses and liquids
Port Size	1/2 inch	Actuation Type	Pneumatic Operated
Actuator Size	64 (square inches)	Minimum Fluid Temperature	-40 °F
Number of Ports	2	Port Type	NPTF
Division	Fluid Control Division	Flow Characteristic	Equal%
Function	Normally Open	Product Series	Sinclair Collins K Series
Seal Material	Stainless Steel	Orifice 1 Size	0.84 inch
Maximum Pilot Pressure	35 psi	Maximum Fluid Temperature	450 °F
Valve Type	2-Way	Weight	25 lb
Maximum Pressure Differential	250 psi	Flow Coefficient 1	6 Cv
Body Material	316 Stainless Steel	Actuator Size	64 (square inches)
Flow Characteristic	Equal%

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
