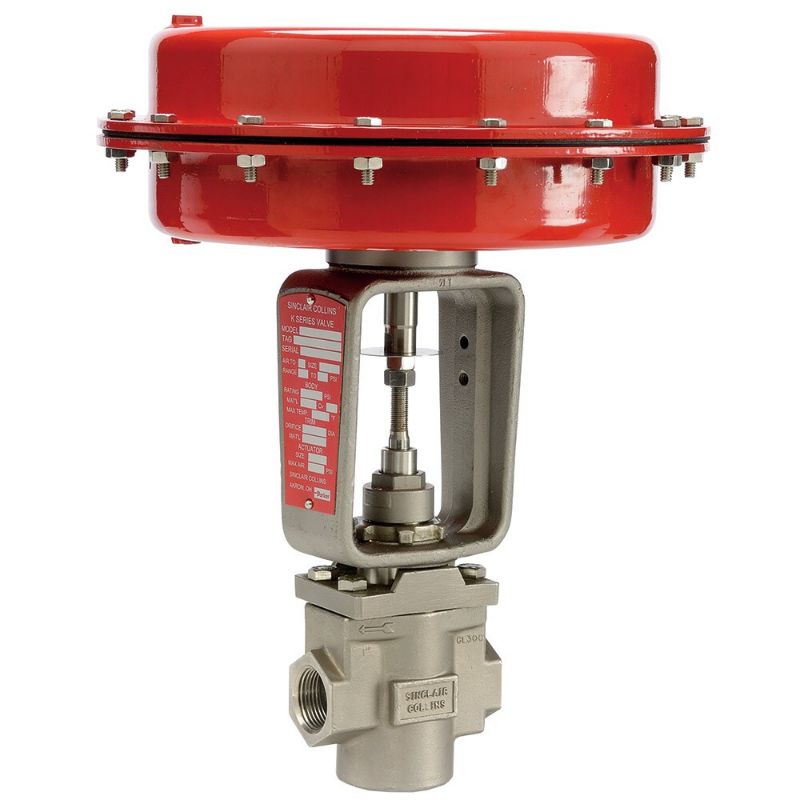

Parker K31-22112000 - Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K31-22112000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Characteristic	Equal%	Product Series	Sinclair Collins K Series
Function	Normally Open	Orifice 1 Size	0.84 inch
Seal Material	Stainless Steel	Maximum Pressure Differential	250 psi
Maximum Pilot Pressure	35 psi	Weight	25 lb
Actuator Size	37 (square inches)	Valve Type	2-Way
Maximum Fluid Temperature	450 °F	Flow Coefficient 1	6 Cv
Minimum Fluid Temperature	-40 °F	Media	Valves for steam, air, neutral gasses and liquids
Body Material	316 Stainless Steel	Division	Fluid Control Division
Actuation Type	Pneumatic Operated	Number of Ports	2
Port Type	NPTF	Port Size	1/2 inch
Flow Characteristic	Equal%	Body Material	316 Stainless Steel
Actuator Size	37 (square inches)
