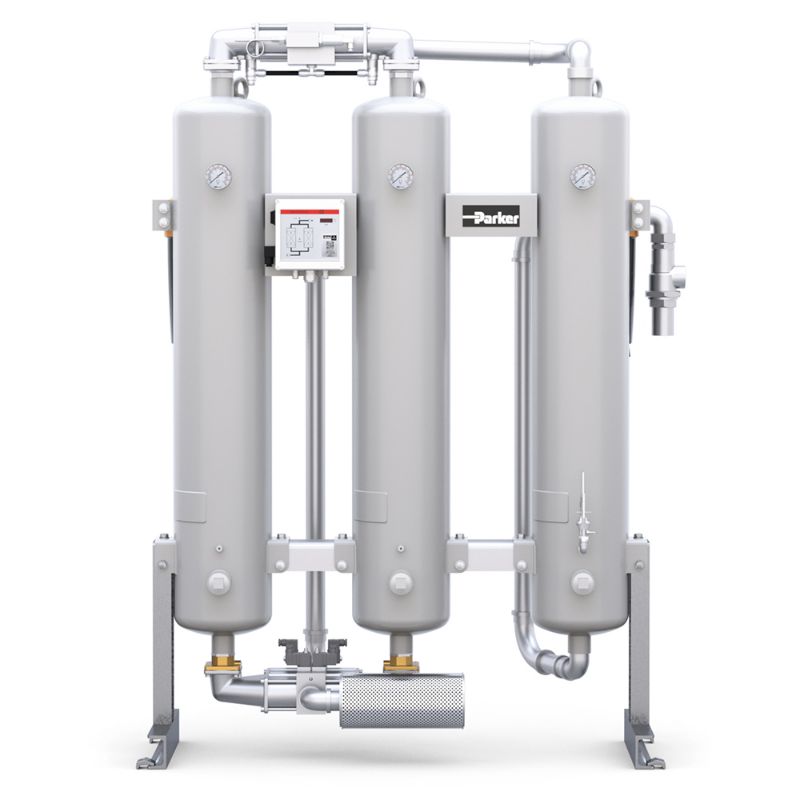

Parker K25/16DA3-G230M - KA-MT 10-95 Series Compressed Air Adsorption Dryer With Activated Carbon Stage

Large flow heatless compressed air dryer with an activated carbon stage, for oil vapor removal, for applications requiring volume flows up to 940m³/h @ 7 barg with a pressure dew point of -40°C (-25°C and -70°C options).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K25/16DA3-G230M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Noise Level	65 to 86 dBA
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Specifications Met	PED 2014/68/EU Fluid Group II<br/> Others on request.
Division	Gas Separation and Filtration Division EMEA	Product Series	KA-MT 10-95
Weight	381 lb	Product Type	Compressed Air Dryer
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Depth	20 inch
Height	68 inch	Operating Pressure	58 to 232 psig
Electrical Requirements	Standard:<br/>230V 1ph 50/60Hz<br/><br/>Options:<br/>115V 1ph 50/60Hz<br/>or 24V DC	Application	Compressed Air Applications
Division	Gas Separation and Filtration Division EMEA	Technology	Filtration
Operating Temperature	41 to 122 °F	Connection Type	BSPP
Width	25 inch	Product Style	Heatless with Activated Carbon Stage
Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Ambient Temperature	122.0 °F Maximum
Port Size	1½ inch	Optional Accessories	None
Flow Rate	255 m³/h @7 barg (150 cfm @102 psig)
