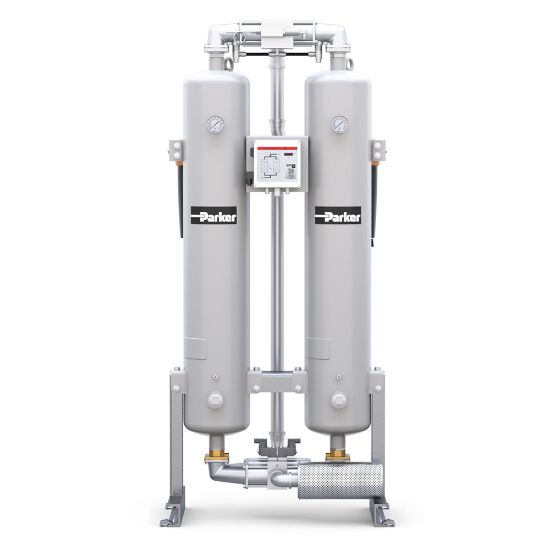

Parker K25/16D3-G230M - K-MT 10-95 Series Heatless Compressed Air Dryer

Large flow heatless compressed air dryers for applications requiring volume flows up to 940m³/h @ 7 barg with a pressure dew point of -40°C (-25°C and -70°C options).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K25/16D3-G230M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	PED 2014/68/EU Fluid Group II<br/> Others on request.	Division	Gas Separation and Filtration Division EMEA
Height	68 inch	Product Type	Compressed Air Dryer
Operating Pressure	58 to 232 psig	Width	36 inch
Electrical Requirements	Standard:<br/>230V 1ph 50/60Hz<br/><br/>Options:<br/>115V 1ph 50/60Hz<br/>or 24V DC	Application	Compressed Air Applications
Division	Gas Separation and Filtration Division EMEA	Technology	Filtration
Operating Temperature	41 to 122 °F	Connection Type	BSPP
ISO Grade	Standard: Class 2.2.2<br/> Options: Class 2.1.2 or Class 2.3.2	Product Series	K-MT 10-95
Ambient Temperature	122.0 °F Maximum	Weight	234 kg
Noise Level	65 to 86 dBA	Product Style	Heatless
Depth	506.0 mm	Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Brand	Parker
Port Size	1½ inch	Flow Rate	255 m³/h @7 barg (150 cfm @102 psig)
Optional Accessories	None
