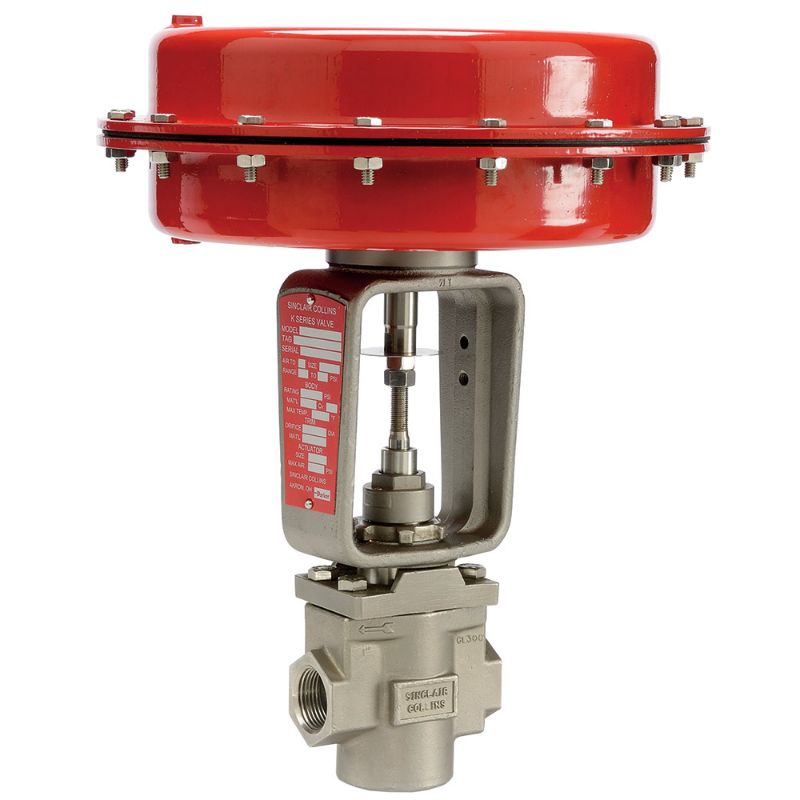

Parker K22-41114000 - Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Valves are made for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K22-41114000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Number of Ports	2	Minimum Fluid Temperature	-40 °F
Weight	29 lb	Actuation Type	Pneumatic Operated
Division	Fluid Control Division	Function	Normally Closed
Port Type	NPTF	Port Size	1 inch
Product Series	Sinclair Collins K Series	Seal Material	Stainless Steel
Maximum Pressure Differential	250 psi	Flow Coefficient 1	13 Cv
Maximum Pilot Pressure	35 psi	Actuator Size	64
Valve Type	2-Way	Maximum Fluid Temperature	450 °F
Orifice 1 Size	1.06 inch	Flow Characteristic	Linear
Body Material	316 Stainless Steel	Media	Valves for steam, air, neutral gasses and liquids
Actuator Size	64	Flow Characteristic	Linear
Body Material	316 Stainless Steel	Maximum Pressure Differential (psi)	250

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
