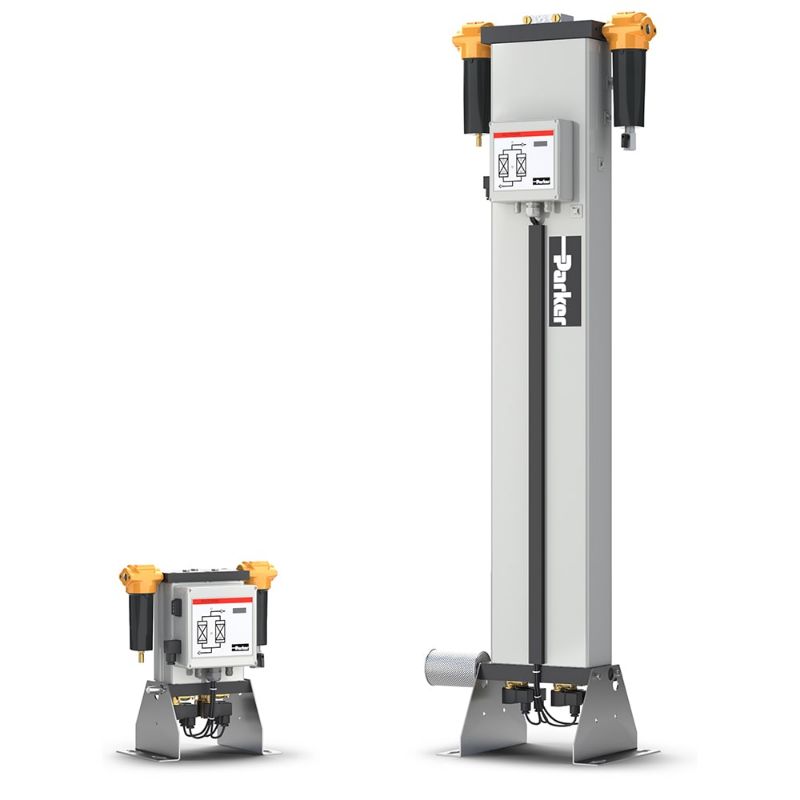

Parker K2/16D3-N115M - K-MT 1-8 Series Heatless Compressed Air Dryer

Compact, heatless compressed air dryers for applications requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K2/16D3-N115M

$3,870.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Dew Point	Standard: -40°C (-40°F)<br/>
Brand	Parker	Specifications Met	PED 2014/68/EU Fluid Group II
Division	Gas Separation and Filtration Division EMEA	Product Type	Compressed Air Dryer
ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1	Product Series	K-MT 1-8
Width	14 inch	Operating Pressure	58 to 232 psig
Depth	210.0 mm	Connection Type	BSPP
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/>Pharmaceuticals<br/> Medical & Dental	Division	Gas Separation and Filtration Division EMEA
Technology	Filtration	Operating Temperature	41 to 122 °F
Height	23 inch	Product Style	Heatless
Ambient Temperature	50.0	Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only
Noise Level	65 to 86 dBA	Flow Rate	15 m³/h @7 barg (9 cfm @102 psig)
Optional Accessories	None	Electrical Requirements	115V 1ph 50/60Hz
Port Size	¼ inch
