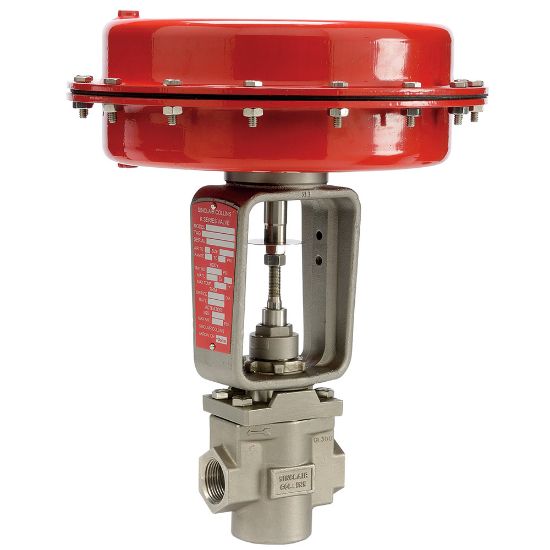

Parker K21-41114000 - Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Valves are made for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K21-41114000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Stainless Steel	Actuator Size	37
Flow Coefficient 1	13 Cv	Weight	21 lb
Valve Type	2-Way	Maximum Pilot Pressure	35 psi
Orifice 1 Size	1.06 inch	Maximum Fluid Temperature	450 °F
Flow Characteristic	Linear	Body Material	316 Stainless Steel
Minimum Fluid Temperature	-40 °F	Media	Valves for steam, air, neutral gasses and liquids
Port Type	NPTF	Function	Normally Closed
Number of Ports	2	Actuation Type	Pneumatic Operated
Division	Fluid Control Division	Port Size	1 inch
Product Series	Sinclair Collins K Series	Maximum Pressure Differential	190 psi
Maximum Pressure Differential (psi)	190	Actuator Size	37
Body Material	316 Stainless Steel	Flow Characteristic	Linear

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
