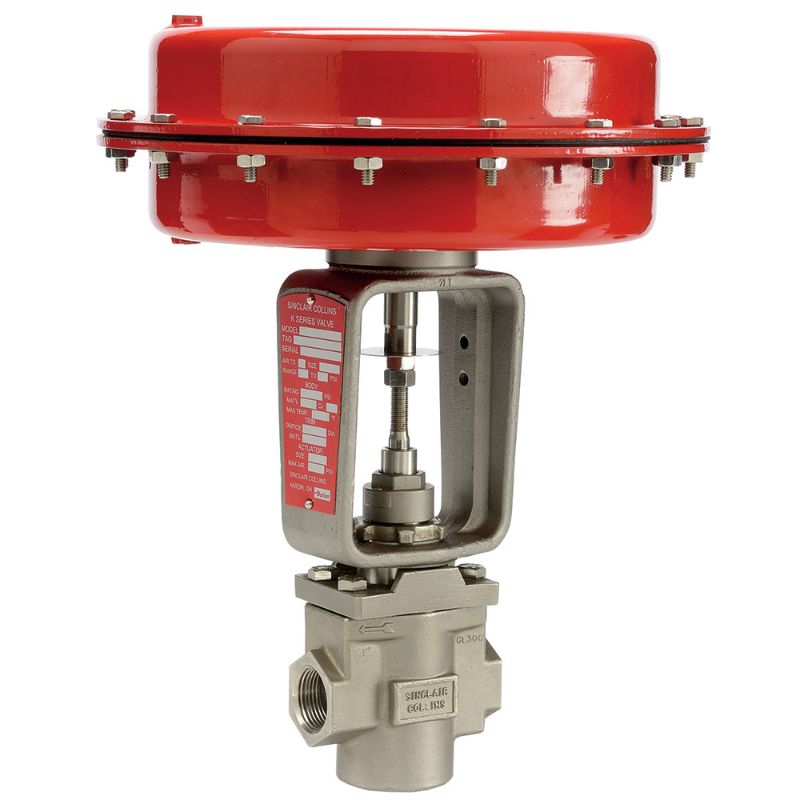

Parker K21-22112000 - Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K21-22112000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Valves for steam, air, neutral gasses and liquids	Body Material	316 Stainless Steel
Minimum Fluid Temperature	-40 °F	Port Type	NPTF
Port Size	1/2 inch	Number of Ports	2
Division	Fluid Control Division	Function	Normally Closed
Actuation Type	Pneumatic Operated	Flow Characteristic	Equal%
Actuator Size	37	Product Series	Sinclair Collins K Series
Seal Material	Stainless Steel	Orifice 1 Size	0.84 inch
Valve Type	2-Way	Maximum Pilot Pressure	35 psi
Maximum Pressure Differential	250 psi	Maximum Fluid Temperature	450 °F
Weight	19 lb	Flow Coefficient 1	6 Cv
Body Material	316 Stainless Steel	Flow Characteristic	Equal%
Actuator Size	37

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
