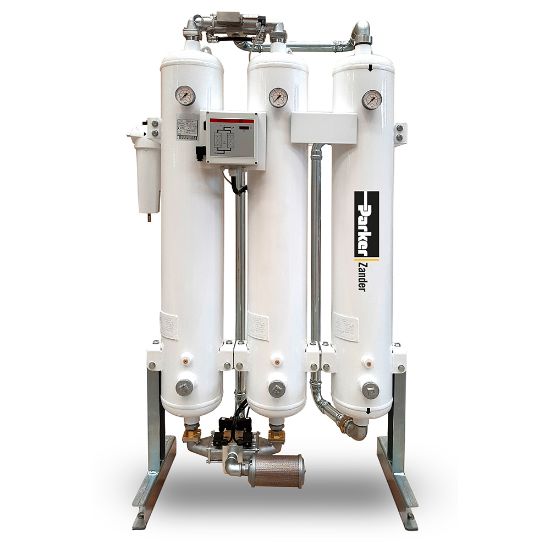

Parker K20/16BP3-G230M - Breathing Star BSP-MT 10-95 Industrial and Medical Breathing Air System

Medium to large flow breathing air treatment systems providing purified breathing air, with CO/CO2 reduction. Meeting European Pharmacopoeia and other international breathing air standards with volume flow rates up to 1371 m³/h @ 13 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K20/16BP3-G230M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Noise Level	< 75 dBA	Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
Brand	Parker	Depth	490.0 mm
Specifications Met	PED 2014/68/EU Fluid Group II	ISO Grade	ISO8573-1:2010 Class 2.2.1
Division	Gas Separation and Filtration Division EMEA	Pressure Dew Point	-40 °F
Product Type	Breathing Air Purifier	Width	1100.0 mm
Compatible After Filter	OIL-X AOPX025E (Included)<br/>OIL-X AAPX025E (Option)	Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
Weight	432.2 lb	Product Series	BSP-MT 10-95
Height	60.2 inch	Ambient Temperature	50.0 °C Maximum
Technology	Filtration	Operating Temperature	41 to 122 °F
Ingress Protection Rating	IP65 Indoor Use Only	Connection Type	BSPP
Compatible Prefilter	OIL-X AOPX025E and AAPX025E (Included)	Operating Pressure	4 to 16 barg
Electrical Requirements	230V 1ph 50/60Hz	Port Size	1 inch
Flow Rate	274 m³/h @ 13 barg (161 cfm @ 189 psig)	Optional Accessories	None
