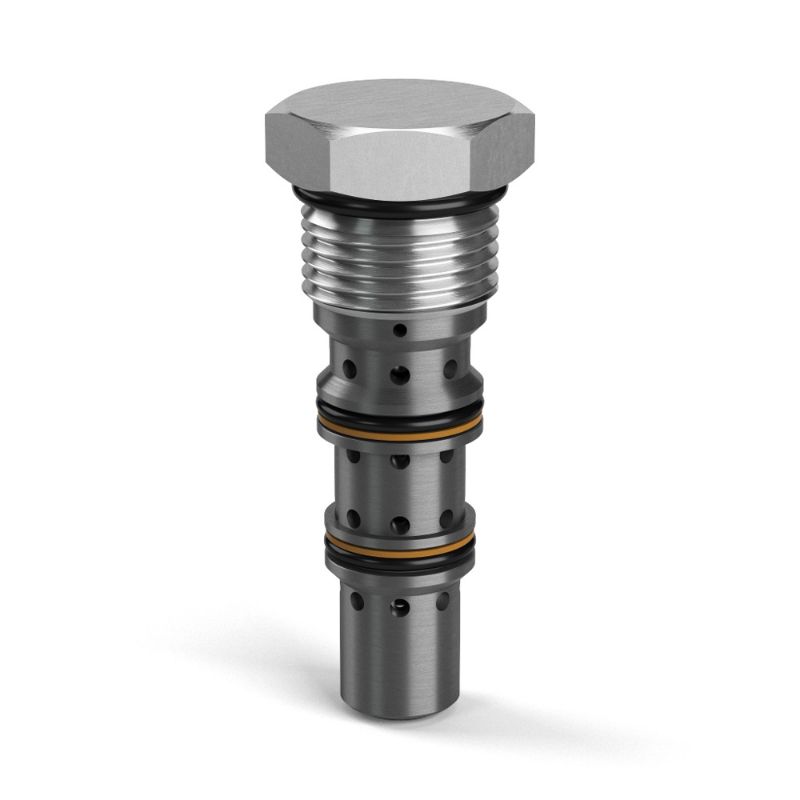

Parker K04G3N - Cartridge Spool Type Inverse Shuttle Valves

REGIONAL - Parker’s K04G3 shuttle is a three way, spring centered inverse style shuttle valve used in dual accumulator circuits to ensure equal charging pressure for each accumulator.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04G3N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Mobile Hydraulic Systems Division Europe	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	50 L/min	Weight	0.31 lb
Function	Inverse Shuttle	Maximum Operating Pressure	5000 psi
Body Material	n/a	Maximum Inlet Pressure Rating	5000 psi
Configuration	3-Way Ball Type	Installation Torque	50 Nm
Valve Material	All parts steel. All operating parts hardened steel	Operation Type	Spring Centered
Maximum Operating Temperature	+121 °C	Leak Rate	5 @ 1450 PSI (100 BAR) drops/min
Actuation Type	Pressure Sensing	Seal Material	Nitrile
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	50 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Minimum Operating Temperature	-30 °F
Operating Temperature	-30 to +250 °F	Cavity Size	C10-4
Seal Material	Nitrile	Flow Rate	13 GAL/MIN, 50 L/MIN
