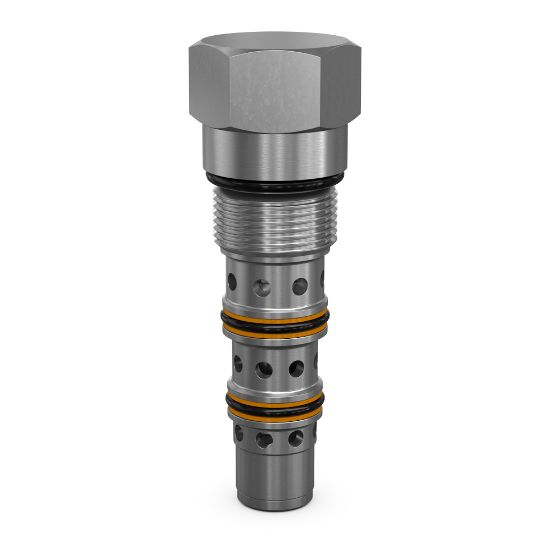

Parker K04F3-0.0V - Cartridge Spool Type Shuttle Valves with All Ports Open

REGIONAL - Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04F3-0.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	37
Operation Type	Spring Centered, All Parts Open	Function	Shuttle
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	3-way Spool Type
Switching Pressure	0	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Operating Temperature	-15 to +400
Maximum Flow Rate	26	Maximum Inlet Pressure Rating	6000
Flow Rate	26	Seal Material	Fluorocarbon
Actuation Type	Pressure Sensing	Leak Rate	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	+400	Maximum Operating Pressure	6000
Cavity Size	C10-4	Minimum Operating Temperature	-15
Standard Flow Rate Setting	15	Weight	0.37
Switching Pressure	0 PSI, 0 BAR	Flow Rate	26 GAL/MIN, 100 L/MIN
Seal Material	Fluorocarbon
