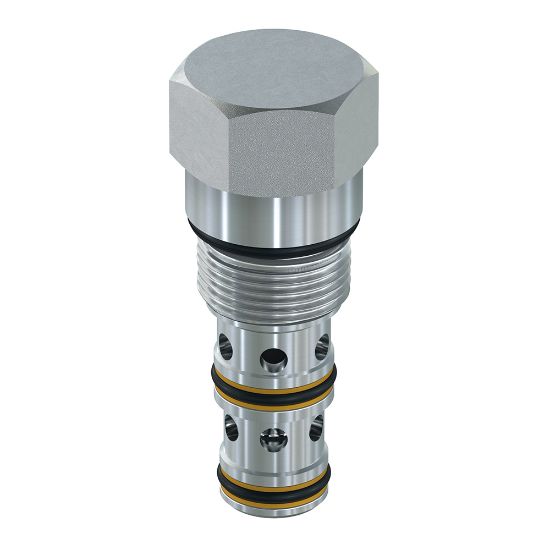

Parker K04D3N - Cartridge Spool Type Shuttle Valve

REGIONAL - Parker's 2-position, 3-way spool type shuttle valves will fit industry common cavities while providing superior performance; capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04D3N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	-34 to +121 °C	Cavity Size	C10-3
Operation Type	Automatic	Maximum Inlet Pressure Rating	420 bar
Division	Mobile Hydraulic Systems Division Europe	Function	Shuttle
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	3-way Spool Type
Standard Flow Rate Setting	13 Gal/min	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	50 Nm	Body Material	n/a
Weight	0.14 kg	Seal Material	Nitrile
Maximum Operating Temperature	+121 °C	Actuation Type	Pressure Sensing
Maximum Flow Rate	90 L/min	Flow Rate	24 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	6000 psi	Minimum Operating Temperature	-34 °C
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	Seal Material	Nitrile
Flow Rate	24 GAL/MIN, 90 L/MIN
