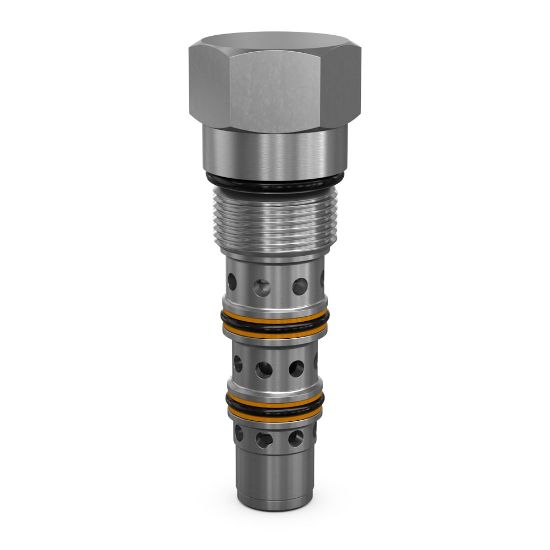

Parker K04C3-0.0N - Cartridge Spool Type Shuttle Valves with All Ports Closed

REGIONAL - Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04C3-0.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Standard Flow Rate Setting	15 Gal/min	Actuation Type	Pressure Sensing
Seal Material	Nitrile	Minimum Operating Temperature	-30 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.37 lb
Operating Temperature	-30 to +250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	26 Gal/min	Operation Type	Spring Centered, All Parts Closed
Switching Pressure	0 psi	Cavity Size	C10-4
Flow Rate	100 L/min	Configuration	3-way Spool Type
Division	Mobile Hydraulic Systems Division Europe	Maximum Operating Pressure	420 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	6000 psi
Function	Shuttle	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Maximum Operating Temperature	+121 °C
Leak Rate	100 @ 1450 PSI (100 BAR) cm3/min	Installation Torque	50 Nm
Seal Material	Nitrile	Flow Rate	26 GAL/MIN, 100 L/MIN
Switching Pressure	0 PSI, 0 BAR
