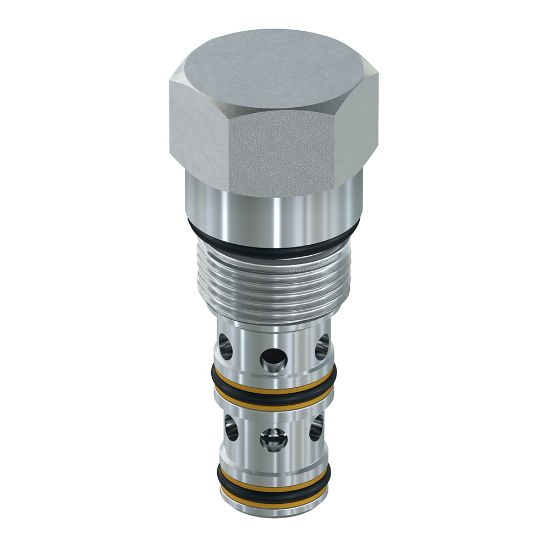

Parker K04B3-5.0V - Cartridge Spool Type Shuttle Valve with Spring Offset

REGIONAL - Parker's 2-position, 3-way spool type shuttle valve with spring offset are spring biased into its normal position and are capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04B3-5.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	+204 °C	Maximum Operating Pressure	420 bar
Function	Shuttle	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	3-way Spool Type	Maximum Inlet Pressure Rating	6000 psi
Maximum Flow Rate	24 Gal/min	Weight	0.14 kg
Operating Temperature	-26 to +204 °C	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Switching Pressure	5 bar
Standard Flow Rate Setting	50 L/min	Operation Type	Spring Offset
Actuation Type	Pressure Sensing	Seal Material	Fluorocarbon
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	24 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Installation Torque	37 lb-ft	Cavity Size	C10-3
Minimum Operating Temperature	-15 °F	Division	Mobile Hydraulic Systems Division Europe
Seal Material	Fluorocarbon	Flow Rate	25 GAL/MIN, 90 L/MIN
Switching Pressure	73 PSI, 5 BAR
