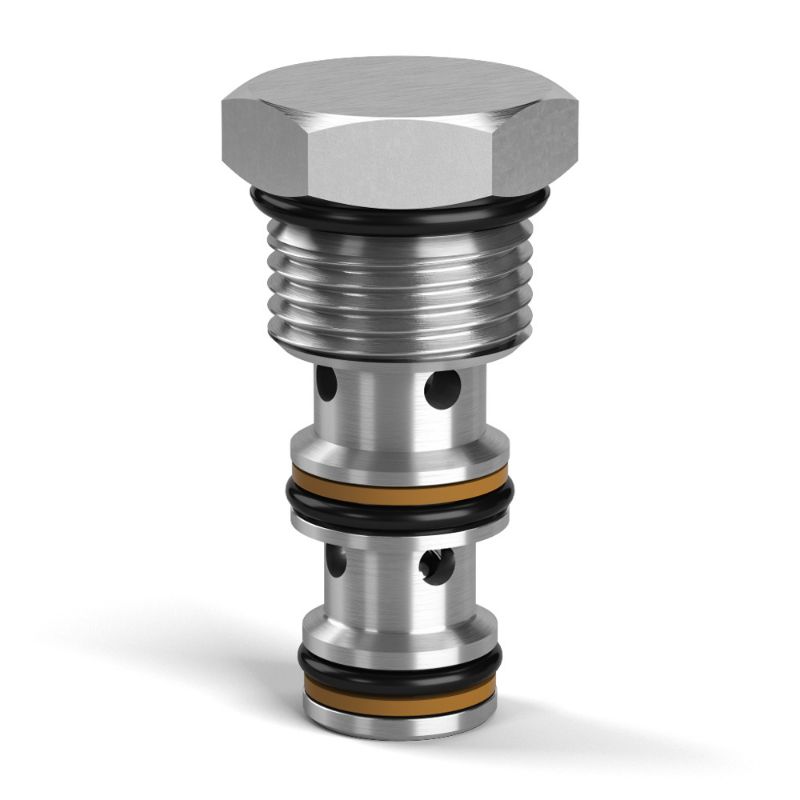

Parker K02A3V - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K02A3V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Actuation Type	Pressure Sensing
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	C08-3
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Automatic
Weight	0.15 lb	Maximum Operating Temperature	+400 °F
Installation Torque	30 lb-ft	Division	Mobile Hydraulic Systems Division Europe
Minimum Operating Temperature	-15 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	420 bar	Maximum Inlet Pressure Rating	6000 psi
Function	Diverter	Standard Flow Rate Setting	27 L/min
Flow Rate	13 Gal/min	Configuration	3-Way Ball Type
Body Material	n/a	Leak Rate	5 @ 6000 PSI (420 BAR) drops/min
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	13 Gal/min
Operating Temperature	-26 to +204 °C	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	13 GAL/MIN, 50 L/MIN
