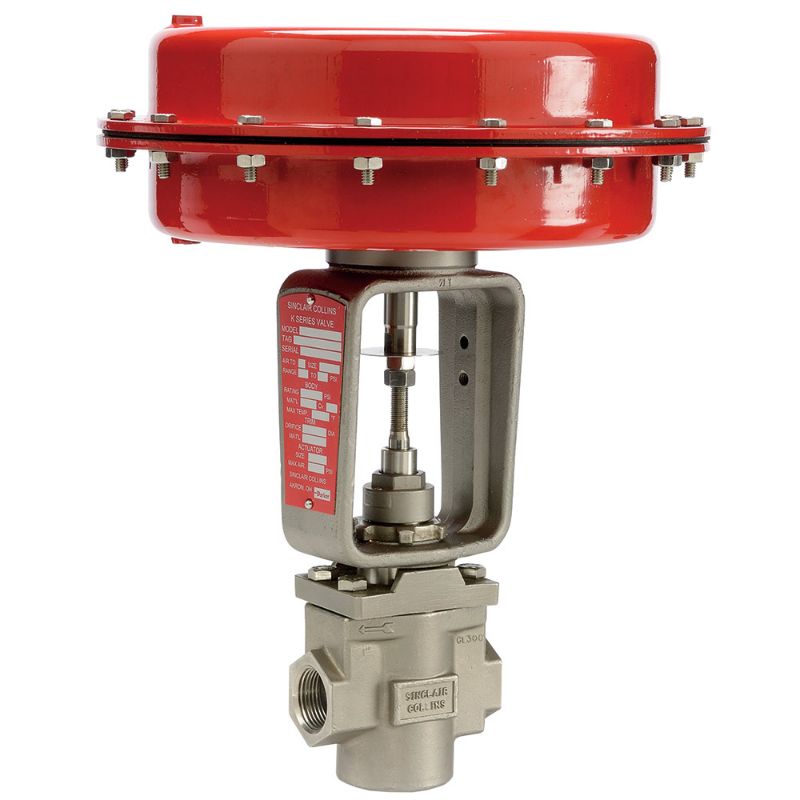

Parker K01-31013000 - Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Valves are ideally suited for applications requiring higher media temperatures. Constructed of highly durable bronze, these high performance valves are fully tested prior to shipping

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K01-31013000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Characteristic	Linear	Weight	22 lb
Minimum Fluid Temperature	-40 °F	Media	Valves for steam, air, neutral gasses and liquids
Port Size	3/4 inch	Maximum Fluid Temperature	400 °F
Actuation Type	Pneumatic Operated	Port Type	NPTF
Function	Normally Closed	Body Material	Bronze
Division	Fluid Control Division	Number of Ports	2
Flow Coefficient 1	8 Cv	Actuator Size	37
Product Series	Sinclair Collins K Series	Seal Material	Stainless Steel
Orifice 1 Size	0.84 inch	Valve Type	2-Way
Maximum Pressure Differential	250 psi	Maximum Pilot Pressure	35 psi
Actuator Size	37	Flow Characteristic	Linear

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
