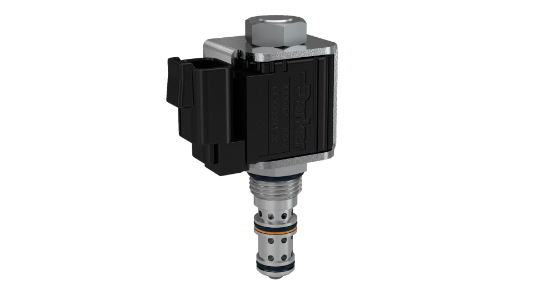

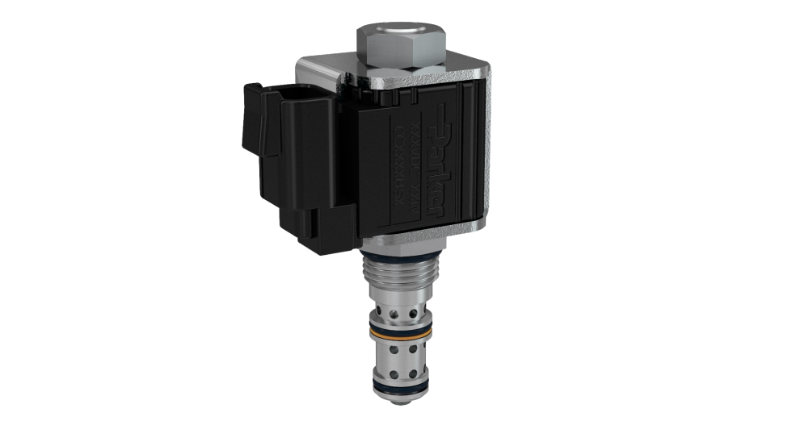

Parker JP02P2001V - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. JP02P2001V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Connection Size	n/a
Connection Type	n/a	Weight	0.17
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Operating Pressure	3000	Override Functionality	n/a
Wire Mesh Screen Included	Yes	Operation Type	Solenoid Operated
Coil Nut Tightening Torque	3	Cavity Size	C08-3
Maximum Flow Rate	2.5	Maximum Inlet Pressure Rating	3000
Function	Proportional Flow Control/Regulator	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Variation of Opening Point	N/A	Operating Temperature	-15 to +400
Frequency	100-400	Maximum Operating Temperature	+400
Coil Type	1/2" Super Coil Low Watt (CCS)	Flow Direction	Top to Side (3 - 2)
Installation Torque	20	Flow Rate Accuracy	Up to 20%
Variation of Closing Point	75% of Input Signal	Current	Max: 1.15 @ 12 VDC, 0.58 @ 24 VDC
Flow Rate	2.5	Leak Rate	570 @ 3000 PSI (210 BAR)
Hysteresis	< 3%	Configuration	Normally Open, Pressure Compensated
Power Consumption	14	Minimum Pressure Differential	150
Seal Material	Fluorocarbon	Actuation Type	Electrical
Flow Rate	2.5 GAL/MIN, 9.5 L/MIN	Configuration	Normally Open, Pressure Compensated
