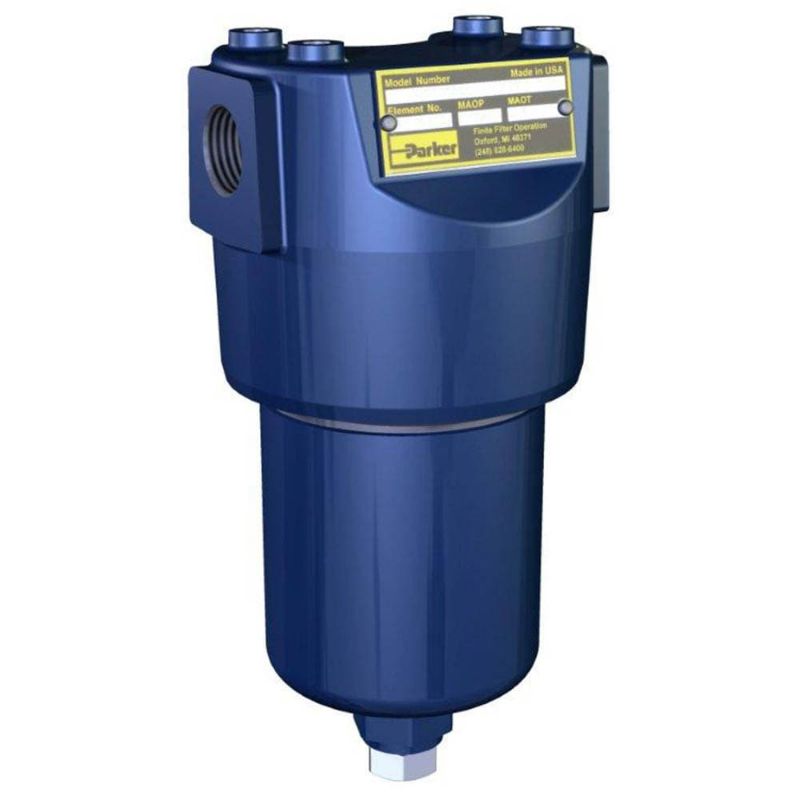

Parker JN2A-10CN - Finite J-Series High Pressure Compressed Air & Gas Filters

Parker’s Finite J-Series filters are designed to filter contaminants such as rust, pipe scale, compressor lube oil, and water from compressed gases. These filters are often used in high pressure Compressed Natural Gas (CNG) systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. JN2A-10CN

$1,137.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Plating Type	Nickel Plated
Coating	Epoxy Powder Paint	Drain Port Size	SAE 6
Division	Industrial Gas Filtration and Generation Division	Compatible Element	10CJAK
Brand	Finite	Bowl Type	Steel
Seal Material	Fluorocarbon	Optional Accessories	Horizontal Drain Kit 5000 PSIG (JDK5000H), Vertical Drain Kit 5000 PSIG (JDK5000V), Differential Pressure Gauge and Bracket (BDPI-25)
Maximum Operating Temperature	350 °F	Head Material	Spheroidal Graphic Cast Iron
Weight	9 lb	Maximum Operating Pressure	5000 psig
Filter Type	Coalescer	Filter Rating (%)	95
Micron Rating (µm)	1	Maximum Flow Rate (cfm)	2185 at 5000 PSI
Thread Type	NPT	Port Connection	1/2"

Product resources

Literature and Reference Materials
