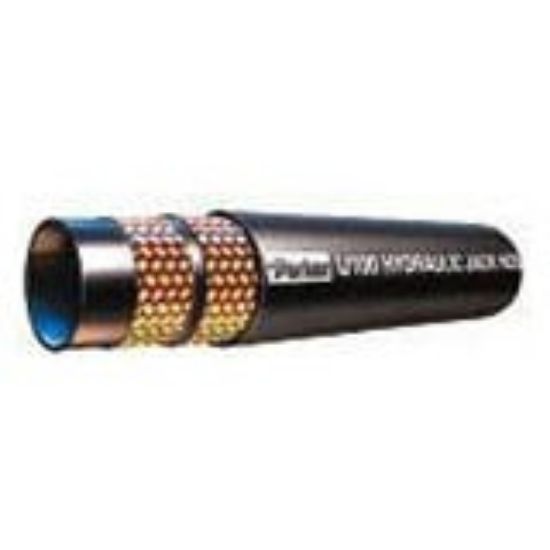

Parker JK-4 - Hydraulic Industry Standard Jack Hose 10000-10500 PSI – JK Hose

Parker's JK hose is a hydraulic industry standard jack hose that has a pressure range of 10000-10500 PSI, with exceptional hydraulic fluid compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. JK-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Lubricating Oils	Specifications Met	EN 853, Type 2SN
Hose Cover Type	Standard Cover	Minimum Bend Radius	4
Inside Diameter	1/4	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	6	Maximum Operating Pressure	10500
Weight	0.39	Minimum Operating Temperature	-40
Outside Diameter	0.590	Compatible Fitting	43 Series
Hose Reinforcement Material	2 Braids of Steel Wire	Division	Hose Products Division
Cover Material	Synthetic Rubber	Maximum Operating Temperature	120
Media	Lubricants	Hose I.D. (size)	-4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
