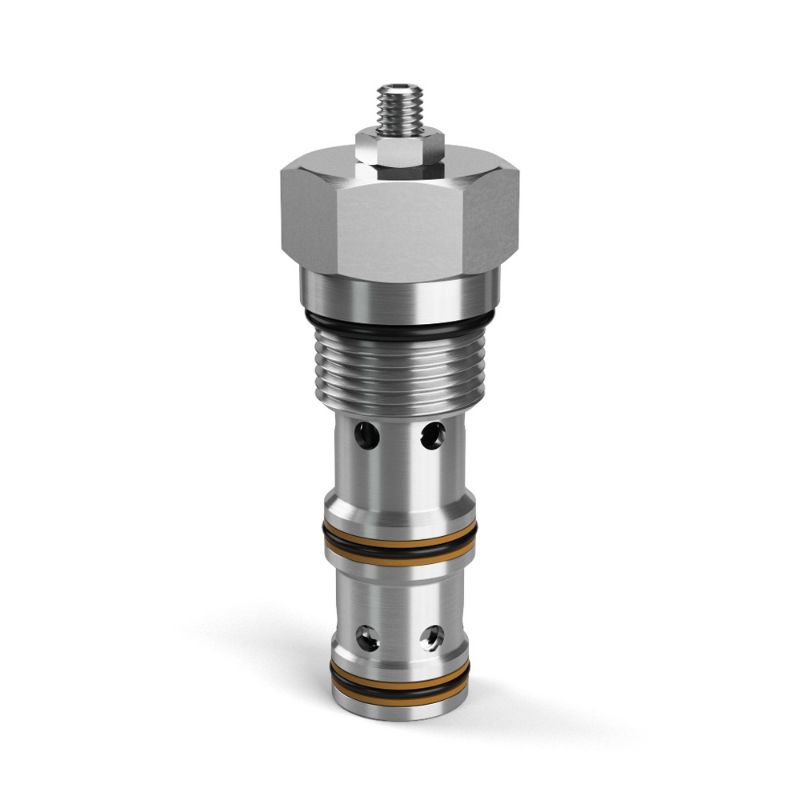

Parker J1A125ZN - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. J1A125ZN

$318.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	350 bar
Weight	1 lb	Maximum Operating Temperature	+121 °C
Flow Rate	150 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	150 L/min	Installation Torque	63 lb-ft
Actuation Type	Pressure Compensated	Operation Type	Manually operated
Configuration	Priority Flow	Function	Flow Regulator Valve
Flow Rate Display Range	N/A L/min	Cavity Size	3A
Maximum Priority Flow	N/A L/min	Standard Flow Rate Setting	25 L/MIN@45 L/MIN Inlet L/min
Maximum Regulated Flow Rate	90 L/min	Seal Material	Nitrile
Adjustment Mechanism	Screw	Flow Rate Display Range	N/A
Maximum Flow Rate	40 GAL/MIN,150 L/MIN	Standard Flow Rate Setting	6.6 GAL/[email protected] GAL/MIN Inlet, 25 L/MIN@45 L/MIN Inlet
