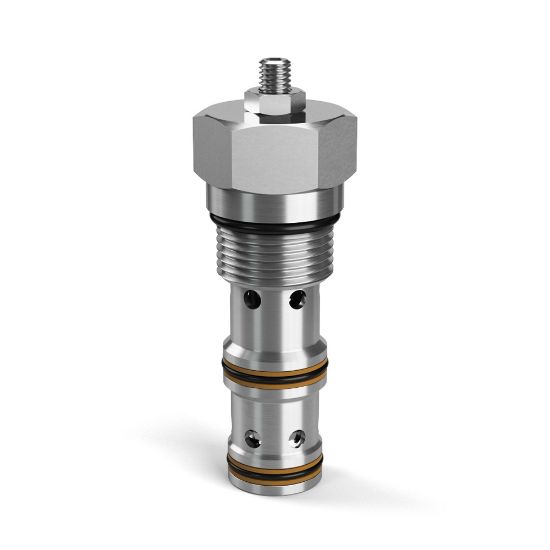

Parker J1A125TN - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J1A125TN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Maximum Flow Rate	40 Gal/min	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	5000 psi
Weight	0.45 kg	Flow Rate	40 Gal/min
Installation Torque	85 Nm	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Priority Flow
Function	Flow Regulator Valve	Flow Rate Display Range	N/A L/min
Cavity Size	3A	Maximum Priority Flow	N/A L/min
Standard Flow Rate Setting	6.6 GAL/[email protected] GAL/MIN Inlet Gal/min	Maximum Regulated Flow Rate	24 Gal/min
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Flow Rate Display Range	N/A	Maximum Flow Rate	40 GAL/MIN,150 L/MIN
Standard Flow Rate Setting	6.6 GAL/[email protected] GAL/MIN Inlet, 25 L/MIN@45 L/MIN Inlet
