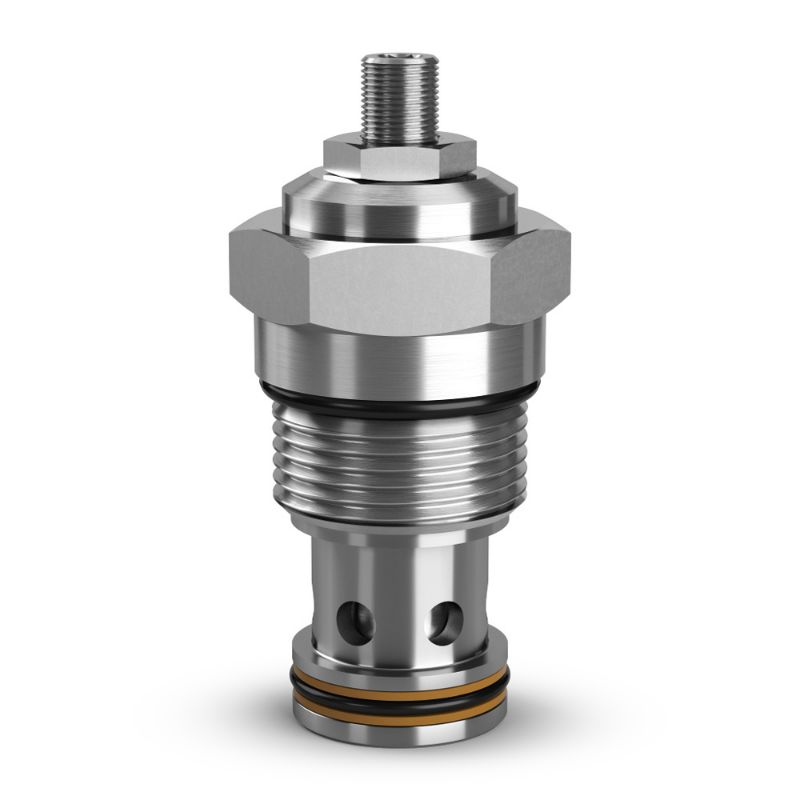

Parker J06A2ZN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J06A2ZN

$553.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	N/A
Division	Hydraulic Cartridge Systems Division	Cavity Size	C16-2
Maximum Operating Temperature	+121 °C	Needle Type	Fine
Maximum Flow Rate	225 L/min	Operation Type	Manually operated
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Body Material	N/A
Installation Torque	74 lb-ft	Minimum Operating Temperature	-30 °F
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-34 to +121 °C
Flow Rate	225 L/min	Actuation Type	Manual
Weight	0.38 kg	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Connection Size	N/A
Adjustment Mechanism	Screw	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	420 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Needle
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	2-Way
Seal Material	Nitrile	Needle Type	Fine
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	60 GAL/MIN, 225 L/MIN
