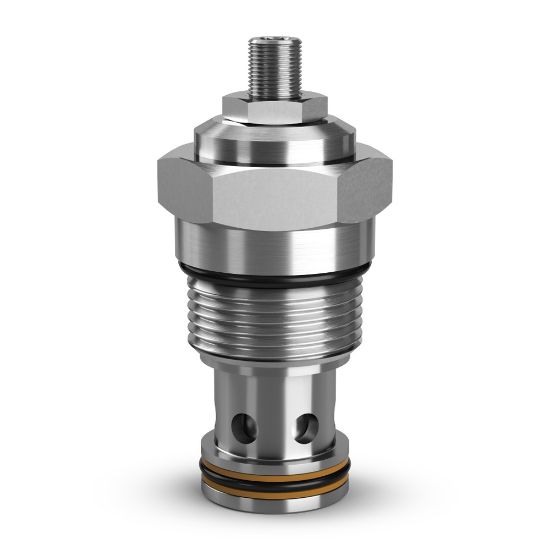

Parker J06A2WV - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J06A2WV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	6000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Function	2-Way	Actuation Type	Manual
Needle Type	Fine	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Knob	Maximum Inlet Pressure Rating	6000 psi
Cavity Size	C16-2	Installation Torque	100 Nm
Maximum Flow Rate	225 L/min	Maximum Operating Temperature	+204 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operation Type	Manually operated	Weight	0.84 lb
Flow Rate	225 L/min	Leak Rate	5 @ 1450 PSI (100 BAR) drops/min
Configuration	Needle	Seal Material	Fluorocarbon
Needle Type	Fine	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	60 GAL/MIN, 225 L/MIN
