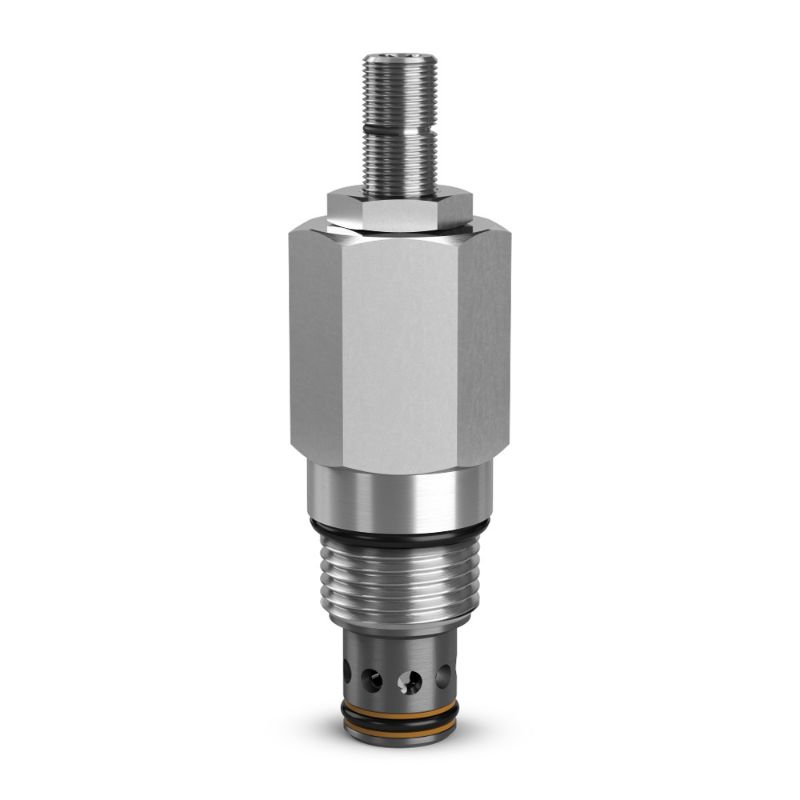

Parker J04E2ZN - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J04E2ZN

$196.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	420 bar	Function	Flow Control
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	420 bar	Weight	0.44 lb
Cavity Size	C10-2	Installation Torque	50 Nm
Maximum Flow Rate	40 L/min	Flow Rate	10.6 Gal/min
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Pressure Compensated	Operation Type	Manually operated
Configuration	Reverse Flow	Flow Rate Display Range	1-40 L/min
Standard Flow Rate Setting	20 L/min	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Flow Rate	10.6 GAL/MIN, 40 L/MIN
Flow Rate Display Range	0.3-10.6 GAL/MIN, 1-40 L/MIN	Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
Configuration	Reverse Flow
