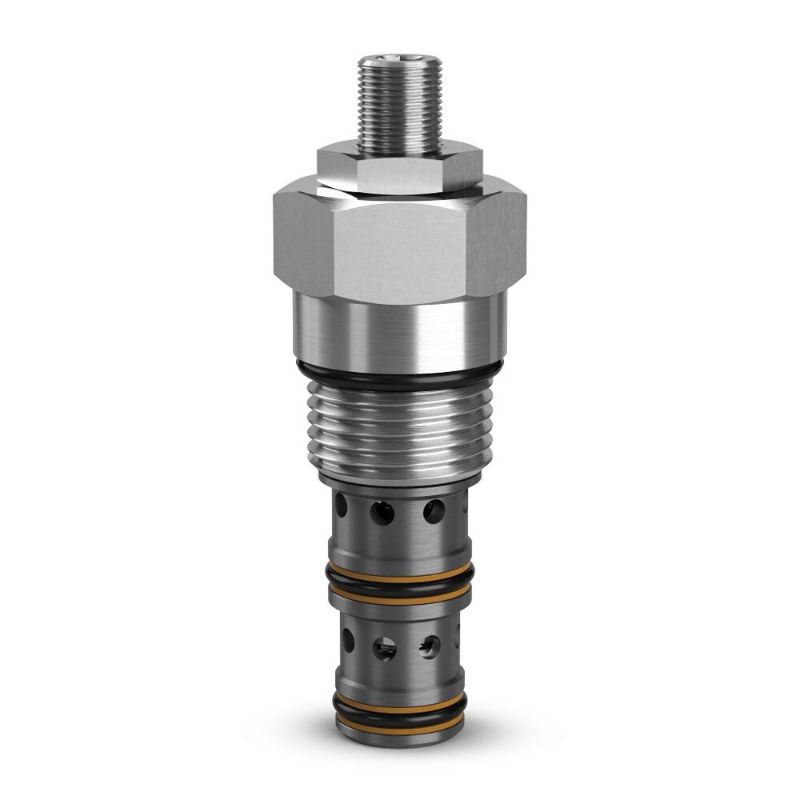

Parker J04D3WN - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J04D3WN

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	0.18 kg	Maximum Operating Pressure	420 bar
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	6000 psi	Installation Torque	50 Nm
Flow Rate	70 L/min	Cavity Size	C10-3
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Pressure Compensated	Operation Type	Manually operated
Configuration	Priority Flow	Function	Flow Regulator Valve
Maximum Flow Rate	18 Gal/min	Maximum Priority Flow	N/A L/min
Flow Rate Display Range	2-45 L/min	Standard Flow Rate Setting	5.3 Gal/min
Maximum Regulated Flow Rate	45 L/min	Seal Material	Nitrile
Adjustment Mechanism	Knob	Maximum Flow Rate	18 GAL/MIN,70 L/MIN
Flow Rate Display Range	0.5-12 GAL/MIN, 2-45 L/MIN	Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
