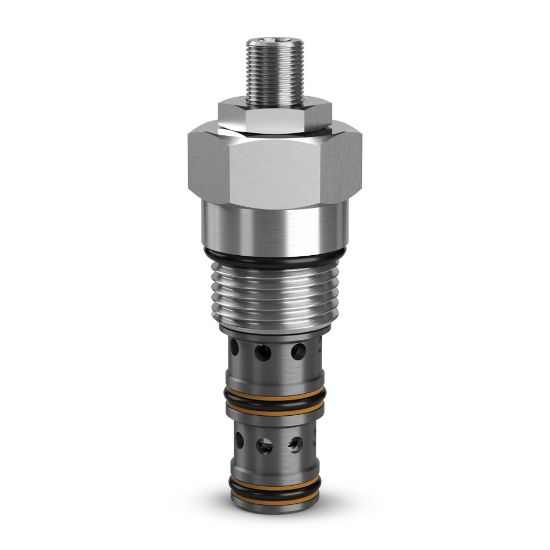

Parker J04D3TN - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J04D3TN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Minimum Operating Temperature	-30	Division	Hydraulic Valve Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	18
Weight	0.4	Maximum Operating Pressure	6000
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	6000	Installation Torque	37
Cavity Size	C10-3	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-30 to +250
Maximum Operating Temperature	+250	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Priority Flow
Function	Flow Regulator Valve	Maximum Flow Rate	18
Maximum Priority Flow	N/A	Flow Rate Display Range	0.5-12 gal/min This is the regulated flow range (min - max)
Standard Flow Rate Setting	5.3	Maximum Regulated Flow Rate	12
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Maximum Flow Rate	18 GAL/MIN,70 L/MIN	Flow Rate Display Range	0.5-12 GAL/MIN, 2-45 L/MIN
Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
