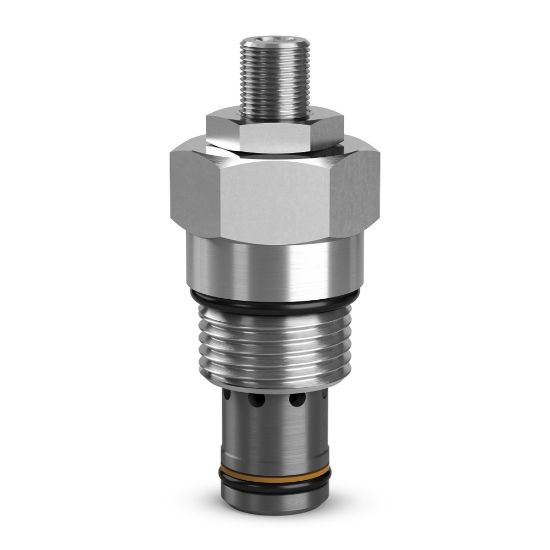

Parker J04C2TN - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J04C2TN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Flow Rate	40 L/min	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	0.15 kg	Maximum Operating Pressure	420 bar
Function	Flow Control	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	420 bar
Cavity Size	C10-2	Installation Torque	37 lb-ft
Maximum Flow Rate	40 L/min	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Partial Reverse Flow
Flow Rate Display Range	1-40 L/min	Standard Flow Rate Setting	20 L/min
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Configuration	Partial Reverse Flow	Maximum Flow Rate	10.6 GAL/MIN, 40 L/MIN
Flow Rate Display Range	0.3-10.6 GAL/MIN, 1-40 L/MIN	Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
