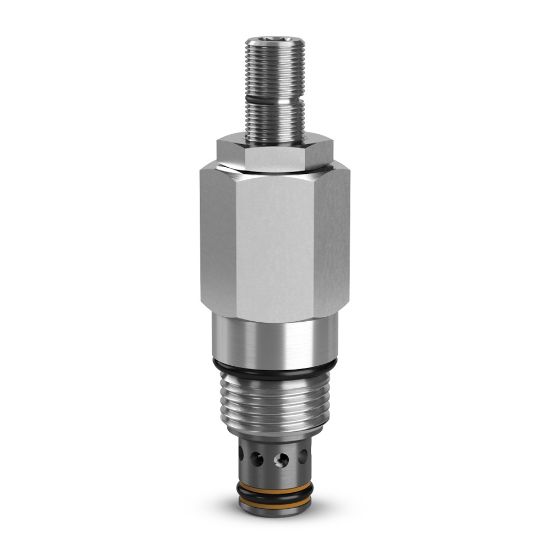

Parker J02E2ZV - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J02E2ZV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	420 bar
Function	Flow Control	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C08-2	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	420 bar	Installation Torque	40 Nm
Weight	0.29 lb	Maximum Operating Temperature	+204 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	5.3 Gal/min
Maximum Flow Rate	5.3 Gal/min	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Reverse Flow
Flow Rate Display Range	0.3-5.3 Gal/min	Standard Flow Rate Setting	10 L/min
Seal Material	Fluorocarbon	Adjustment Mechanism	Screw
Maximum Flow Rate	5.3 GAL/MIN, 20 L/MIN	Flow Rate Display Range	0.3-5.3 GAL/MIN, 1-20 L/MIN
Standard Flow Rate Setting	2.6 GAL/MIN, 10 L/MIN	Configuration	Reverse Flow
