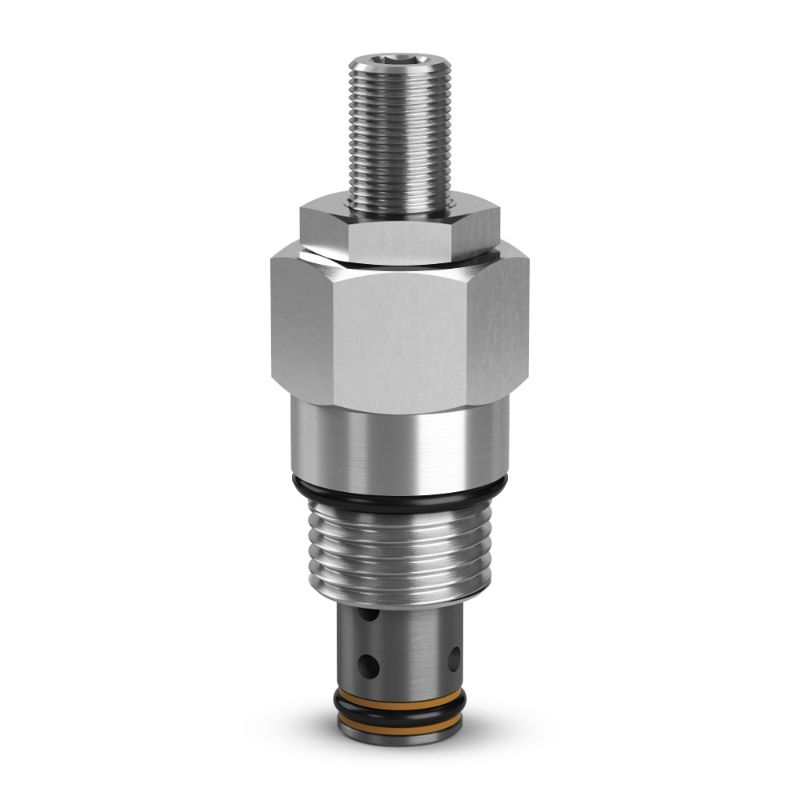

Parker J02B2ZN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J02B2ZN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Maximum Operating Pressure	6000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Function	2-Way	Actuation Type	Manual
Maximum Flow Rate	8 Gal/min	Needle Type	Fine
Weight	0.11 kg	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C08-2	Installation Torque	30 lb-ft
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	420 bar
Flow Rate	8 Gal/min	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operation Type	Manually operated	Configuration	Needle w/Reverse Check
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Seal Material	Nitrile
Needle Type	Fine	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	8 GAL/MIN, 30 L/MIN
