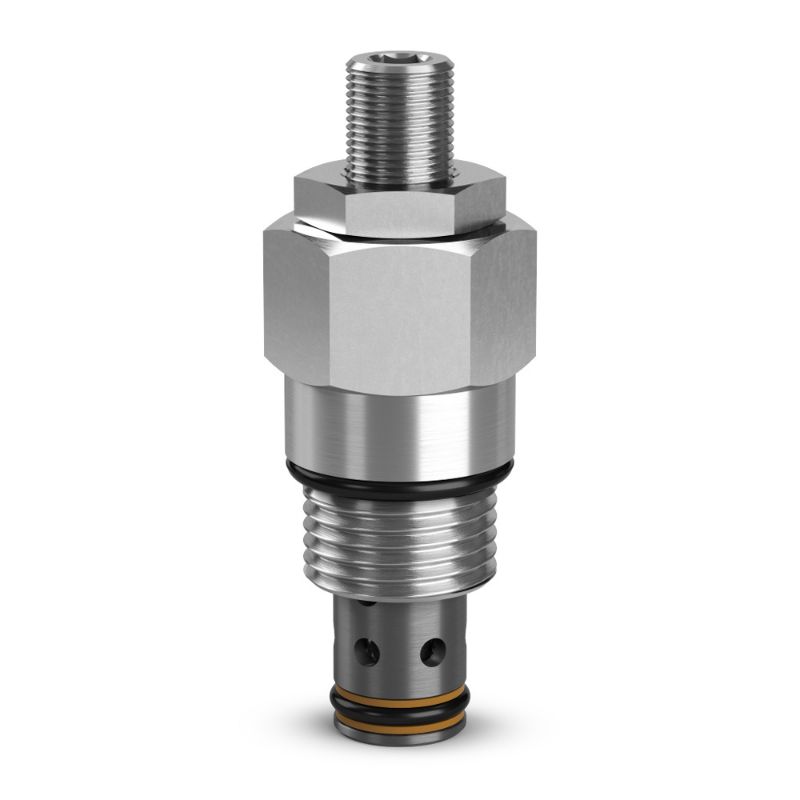

Parker J02A2ZN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. J02A2ZN

$119.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Maximum Operating Pressure	6000 psi
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Function	2-Way
Flow Rate	12 Gal/min	Actuation Type	Manual
Needle Type	Fine	Weight	0.11 kg
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	C08-2
Installation Torque	30 lb-ft	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	420 bar	Maximum Flow Rate	45 L/min
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operation Type	Manually operated
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Configuration	Needle
Seal Material	Nitrile	Needle Type	Fine
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	12 GAL/MIN, 45 L/MIN
