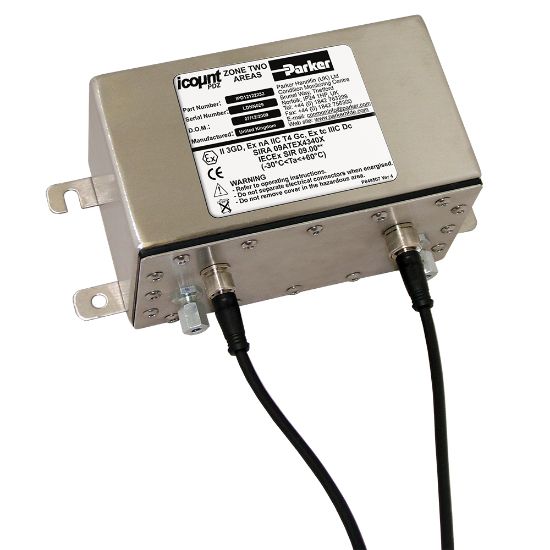

Parker IPDZ12122130 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IPDZ12122130

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Body Material	Brass
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Technology	Hydraulics	Industry	Industrial Manufacturing Equipment
Seal Material	Fluorocarbon	Ingress Protection Rating	IP69K
Product Type	Condition Monitor	Specifications Met	CE Certification
Communication Interface	RS232	Maximum Fluid Temperature	80 °C
Product Style	Particle Detector/Counter	Sensing Method	Laser
Minimum Fluid Temperature	5 °C	Flow Rate	60 L/min
Cycle Time	30 second	Accuracy	+/- 1 ISO code
Operating Humidity	5 to 100% (RH)	Width	110 mm
Height	114 mm	Length	260 mm
Weight	2.6 kg	Port Size	06L EO 24° cone
Port Type	24° Cone EO compression	Signal Output	4 to 20 mA
For Fluid Type	Mineral oils and petroleum based fluids	Operating Pressure	30 to 6000 psi
Operating Temperature	-22 to +140 °F	Electrical Requirements	9 to 40 VDC
Materials of Construction	Housing: Stainless Steel	ATEX Specifications Met	ATEX Zone II
Options	n/a	Housing Material	Stainless Steel
Port Type	M12, 8-pin plug connector	Signal Output	4 to 20 mA
For Fluid Type	Mineral Oil	Indicator Type	No Display on unit
ATEX Specifications Met	ATEX Zone II	Limit Alarm Relay Included	Yes
