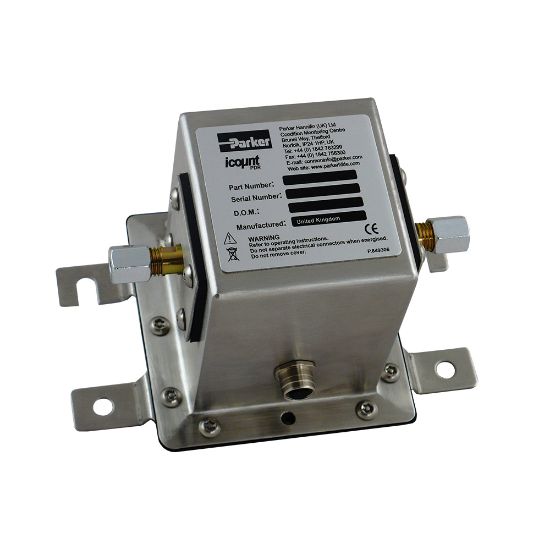

Parker IPDR12112140 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IPDR12112140

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Body Material	Brass	Materials of Construction	Stainless Steel
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Industrial Manufacturing Equipment	Seal Material	Fluorocarbon
Ingress Protection Rating	IP69K	Product Type	Condition Monitor
Specifications Met	CE Certification	Communication Interface	RS232
Maximum Fluid Temperature	80 °C	Operating Pressure	2 to 420 bar
Product Style	Particle Detector/Counter	Sensing Method	Laser
Minimum Fluid Temperature	5 °C	Flow Rate	60 L/min
Length	135 mm	Weight	1.9 kg
Operating Temperature	5 to 60 °C	Cycle Time	30 second
Accuracy	+/- 1 ISO code	Operating Humidity	5 to 100% (RH)
Width	115 mm	Height	114 mm
Port Size	06L EO 24° cone	Port Type	24° Cone EO compression
Signal Output	4 to 20 mA	For Fluid Type	Mineral oils and petroleum based fluids
Electrical Requirements	9 to 40 VDC	Options	n/a
Housing Material	Stainless Steel	Port Type	M12, 12-pin plug connector
Signal Output	4 to 20 mA	For Fluid Type	Mineral Oil
Indicator Type	No Display on unit	ATEX Specifications Met	n/a
Limit Alarm Relay Included	No
