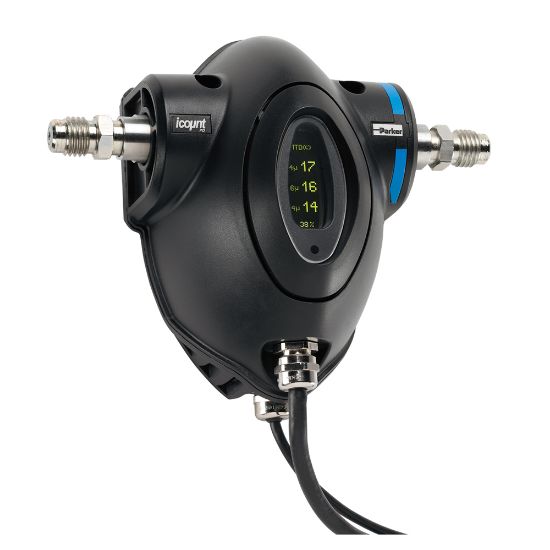

Parker IPD12222210 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IPD12222210

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	Metric	Brand	Parker
Technology	Filtration	Body Material	Brass
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Seal Material	Fluorocarbon	Product Type	Condition Monitor
Specifications Met	CE Certification	Communication Interface	RS232
Flow Rate	60	Minimum Fluid Temperature	5
Weight	1.3	Industry	Industrial & Chemical Processing
Product Style	Particle Detector/Counter	Sensing Method	Laser
Maximum Fluid Temperature	80	Cycle Time	30
Signal Output	4 to 20	Ingress Protection Rating	IP66
Accuracy	+/- 1 ISO code	Operating Humidity	5 to 100% (RH)
Width	85	Height	155
Length	182	Port Size	M16 x 2 hydraulic test points
For Fluid Type	Mineral oils and petroleum based fluids	Operating Pressure	30 to 6000
Operating Temperature	5 to 60	Electrical Requirements	9 to 40
Materials of Construction	ABS	Options	Moisture Sensor
Port Type	Deutsch DT Series	Signal Output	4 to 20 mA
For Fluid Type	Mineral Oil	Indicator Type	LED
Housing Material	ABS	ATEX Specifications Met	n/a
Limit Alarm Relay Included	Yes
