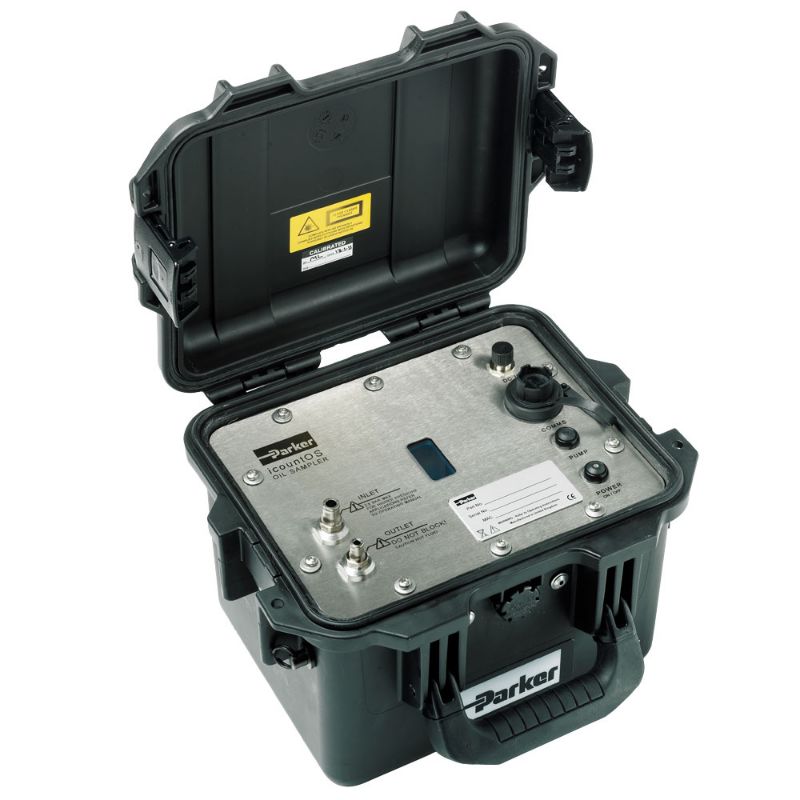

Parker IOS1210US - Portable Particle Monitor – iCountOS

The iCountOS is a highly rugged portable particle size monitor that can be used for measuring contamination levels in fuels and/or hydraulic fluids. Capable of operation online (direct connection to system) or offline (sampling from tank or reservoir).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IOS1210US

$10,746.24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Body Material	Brass	For Fluid Type	Oil
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Technology	Hydraulics	Seal Material	Fluorocarbon
Industry	Off-road Machinery	Product Type	Condition Monitor
Maximum Fluid Temperature	80 °C	Product Style	Particle Detector/Counter
Sensing Method	Laser	Minimum Fluid Temperature	5 °C
Cycle Time	30 second	Signal Output	RS232
Calibration Type	MTD	Operating Pressure	35 to 5000 psi
Specifications Met	IP68	Width	299 mm
Height	195 mm	Weight	5.5 kg
Accuracy	+/- 1 ISO code	Flow Rate	60 ml/min
Operating Humidity	5 to 100% (RH)	Inlet Connection Size	6 mm
Outlet Connection Size	4 mm	Communication Interface	RJ45 LAN Cable
Electrical Requirements	12V Rechargeable Battery	Maximum Ambient Temperature	176 °F
Maximum Kinematic Viscosity	300 cSt	Minimum Ambient Temperature	-40 °C
Electrical Connection	US	Fluid Type	Oil
Connection Style	Offline	Communication Interface	RJ45 LAN Cable
