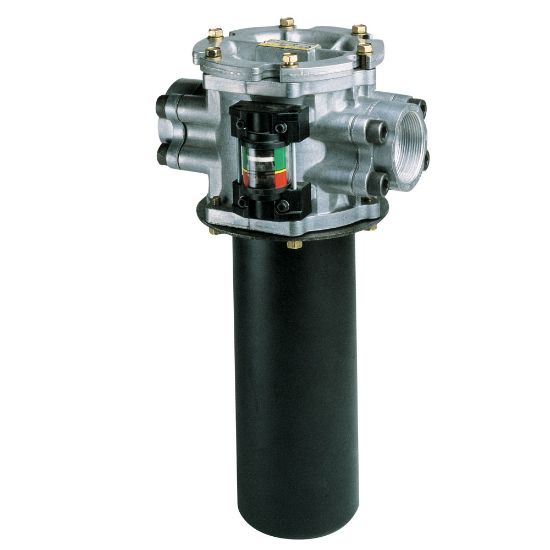

Parker ILP210QBPM35P9P91 - Low Pressure Inline Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ILP210QBPM35P9P91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Housing Material	Aluminum
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Filter Element Type	Cartridge	Maximum Operating Temperature	225 °F
Compatible Element	937399Q	Indicator Pressure Setting	31.5 psi
Pressure Rating	13.8 bar	Bypass Valve Pressure Rating	35 psi
Flow Rate	492 L/min	Weight	11.3 kg
Port Type	SAE-24, SAE-24	Indicator Type	Port Plugged, Visual
Seal Material	Nitrile	Options	None
Filter Element	10Q Microglass	Bypass Valve (psi)	35
Flow Rate (gpm)	130	Indicator Type	Port Plugged, Visual
Port Connection Type	SAE-24, SAE-24
